SPECTREX   40/40M-111SC

SKU# (906)
SPECTREX 40/40M-111SC

DETECTORS / FLAME DETECTORS
MULTI IR

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

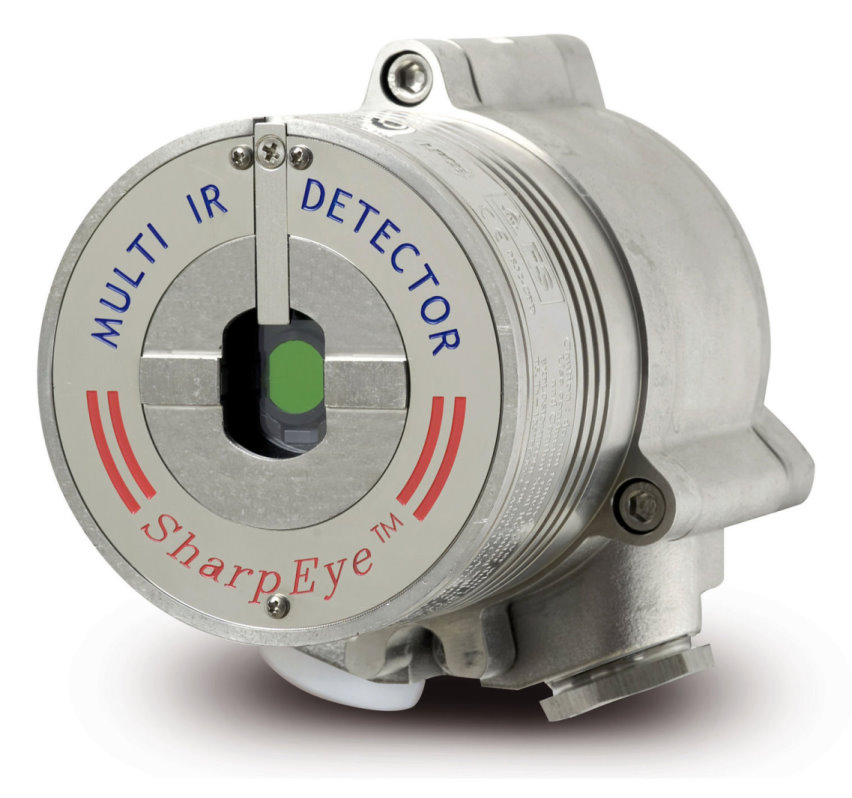

SPECTREX SharpEye 40/40M Multi IR Flame Detector (Stainless Steel only) detects hydrocarbon and hydrogen flames at long distances. Can detect a gasoline pan fire at 215 ft(65m) or a hydrogen flame at 100 ft (30m). 3 Relays (Alarm, Fault and Auxiliary), 0-20mA stepped, compatible with RS-485 Modbus. Self test feature included. ATEX, IECEx, FM, CSA, Class I Div 1 and SIL2 Approved. *** Phased Out replaced by 40/40C-M ***

Inquiry

The 40/40 Series is the most durable and weather resistant range of flame detectors currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements, and a compact, lighter design.

Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is approved to IEC 61508 Safety Integrity requirements of SIL2.

Features
  • Multi Spectrum Design - for long distance detection of
    hydrocarbons and hydrogen flames
  • High false alarm immunity
  • Sensitivity Selection - to ensure no zone crossover detection
  • Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
  • Heated window - for operation in harsh weather conditions (snow, ice, condensation)
  • Multiple output options for maximum flexibility and compatibility
    • Relays (3) for Alarm, Fault and Auxiliary
    • 0-20mA (stepped)
    • HART Protocol for maintenance and asset management
    • RS-485, Modbus Compatible
  • High Reliability - MTBF - minimum 150,000 hours
  • Approved to Safety Integrity Level 2 (SIL2 – TUV)
  • 5-Year Warranty
  • User Programmable via HART or RS-485
  • Ex approved for Zone 1 hazardous area location
    • ATEX
    • IECEx
    • FM
    • CSA
  • 3rd party Performance Tested
    • EN54-10 (LPCB)
    • FM3260 (FM)
Applications
Offshore Oil & Gas installations Automotive Industry
Onshore Oil & Gas installations and pipelines Explosives & Munitions
Chemical plants Waste Disposal facilities
Petrochemicals plants Hydrogen Fuel Cell Industry
Storage Tank farms Hydrogen Vehicle Parking &
Refueling
Aircraft hangars Battery Charging areas
Power Generation facilities Refinery Hydrogenation
Pharmaceutical Industry Space Industry hydroxyl
propellant
Printing Industry Static Fuel Cell systems
Warehouses

GENERAL SPECIFICATIONS
Spectral Response Multi IR Bands
Detection Range
(at highest Sensitivity Setting for 1ft2 (0.1m2) pan fire)
Fuel ft / m
n-Heptane 215 / 65
Gasoline 215 / 65
Diesel Fuel 150 / 45
JP5 150 / 45
Kerosene 150 / 45
Ethanol 95% 135 / 40
Methanol 115 / 35
IPA (Isopropyl Alcohol 135 / 40
Hydrogen* 100 / 30
Methane* 100 / 30
LPG * 100 / 30
Polypropylene Pellets 16 / 5
Office Paper 33 / 10
* 20" (0.5m) high, 8" (0.2m) width plume fire
Response Time Typically 5 seconds.
Adjustable Time Delay Up to 30 seconds
Sensitivity Ranges 4 Sensitive ranges for 1 ft2 (0.1m2) n-heptane pan fire from 50 ft (15m) to 215 ft (65m)
Field of View Horizontal 100º; Vertical 95º
Built-in-Test (BIT) Automatic (and Manual)
Temperature Range Operating: -67ºF to +167ºF (-55ºC to +75ºC)
Option: -67ºF to +185ºF (-55ºC to +85ºC)
Storage: -67ºF to +185ºF (-55ºC to +85ºC)
Humidity Up to 95% non-condensing (withstands up to 100% RH for short periods)
Heated Optics To eliminate condensation and icing on the window
ELECTRICAL SPECIFICATIONS
Operating Voltage 24 VDC nominal (18-32 VDC)
Power Consumption Standby: Max. 100mA (150mA with heated window)
Alarm: Max. 150mA (200mA with heated window)
Cable Entries 2 x 3/4" - 14NPT conduits or 2 x M25 x 1.5 mm ISO
Wiring 12 - 22AWG (2.5mm 2 - 0.3mm 2)
Electrical Input Protection According to MIL-STD-1275B
Electromagnetic Compatibility EMI/RFI protected to EN50130-4
Electrical Interface The detector includes twelve (12) terminals with five (5) wiring options (factory set)
OUTPUTS
Relays Alarm, Fault and Auxiliary
SPST volt-free contacts rated 5A at 30 VDC or 250 VAC.
0-20mA (stepped) Sink (source option) configuration
Fault: 0 +1mA
BIT Fault: 2mA ± 10%
Normal: 5mA ± 10%
Warning: 10mA ± 5%
Alarm: 15mA ± 5%
Resistance Loop: 100-600 Ω
HART Protocol HART communication on the 0-20mA analog current (FSK) - used for maintenance, configuration changes and asset management
RS-485 RS-485 Modbus compatible communication link that can be used in computer controlled
installations
MECHANICAL SPECIFICATIONS
Materials
Enclosure options		 - Stainless Steel 316L with electro polish finish
- Heavy duty copper free aluminum (less than 1%), red epoxy enamel finish
Mounting Stainless Steel 316L with electro polish finish
Dimensions Detector 3.5" x 4.5" x 6.1" (90 x 114 x 156 mm)
Weight Detector (St.St.) 5.5 lb (2.5 kg)
Detector, aluminum 2.5 lb (1.2 kg)
Tilt mount 2.2 lb (1.0 kg)
Environmental Standards Meets MIL-STD-810C for Humidity, Salt & Fog, Vibration, Mechanical Shock, High Temp, Low Temp
Water and Dust IP66 and IP67 per EN60529, NEMA 250 6P
APPROVALS
Hazardous Area
ATEX and IECEx Ex II 2 GD,
  Ex de IIB+H2 T5 o (-5+55 ºCºC 7 x de IIB+H2 T4 (-55ºC to + 85ºC)
  Ex tD A21 IP66/X7 T 95ºC Ex tD A21 IP66/X7 T 105ºC
FM / CSA Class I Div. 1, Groups B, C & D
  Class II/III Div. 1, Groups E, F & G
Performance EN54-10 (LPCB)
FM-3260 (FM)
Reliability IEC61508 - SIL2 (TUV)
ACCESSORIES
Fire Simulator20/20-310
Weather Protector777163
Laser Pointer
(Detector area coverage)		777166
Tilt Mount40/40-003
Air Shield777161
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)90318099

 Info/Quote Request
 Reseller & Volume Discounts

> ACCESSORIES - RELATED - CONSUMABLES :    4 Items found.
(3484)

SPECTREX  789260-2

Pole mount (U-bolt) - 2" for SPECTREX SharpEye flame detectors (does not include required 40/40-001 tilt mount)



$274.84
794079-5
(3149)

SPECTREX  794079-5

USB RS485 Harness Kit with RS485/232 converter, used with Spectrex Host software, enables the user to connect to any available PC or laptop to re-configure settings or perform diagnostics on all 40/40 and 20/20 series flame detectors. Includes Host Software.

Configure

$487.19
FS-1400
(907)

SPECTREX  FS-1400

SPECTREX FS-1400 Long range flame simulator test lamp for all Spectrex Multi IR Flame Detectors. Approved for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas. Up to 40ft testing distance. Includes rechargeable Lithium-ion battery, charger, built-in beam collimator, tool kit and user guide in carrying case. IP65. ATEX and IECEx approved. (Replaces 20/20-313)



$6,190.21
888810
(3482)

SPECTREX  888810

Emerson HART Hand-Held Diagnostics Unit c/w converter and cable harness (1m), software and manual in case. For SPECTREX SharpEye flame detectors and Quasar 900 gas detectors, certified I.S. (EExia)
