ION SCIENCE   GG2SAXXX-X-H2

SKU# (5012)



ION SCIENCE GG2SAXXX-X-H2

DETECTORS / LEAK DETECTORS
HYDROGEN

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Hydrogen (H2). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

GG2SAXXX-X-H2
Please Email us your request for quote

Nozzle
Battery Holder
Box Spanner
Probe Assembly

  [  In Stock  ]

GasCheck G rapidly and accurately detects almost any gas or gas mixture down to highly sensitive levels.

Best available leak detection
  • Fast, accurate leak detection at highly sensitive levels
  • Detects almost any known gas or gas mixture
  • Particularly sensitive to ammonia, argon, butane, helium, hydrogen and SF6
  • Reliable, stable, repeatable readings
Ease of use
  • Simple, one handed operation
  • Large, clear LCD back lit display for easy viewing
  • Graphical icon menu
  • Conveniently calibrated against helium
Flexibility
  • Choice of readings in cc/sec, g/yr, mg/m 3
  • Easily upgradeable throughout the range
Low cost operation
  • Inexpensive consumables and parts
  • Free 2 year warranty when instrument registered online

Designed for the search and location of gas leaks, GasCheck G has an advanced micro thermal conductivity sensor for fast, effective detection of almost any gas or gas mixture.

Robust and reliable, GasCheck G provides stable, repeatable readings of the detected gas. The instrument’s LCD display, LED indicator and audible sounder clearly indicate the leak present.

GasCheck G automatically zeros to the ambient air around it when switched on and is ready to detect immediately. The instrument’s easy to use graphical interface and intuitive keypad allows simple function, selection and adjustment.

Upgradeable throughout the range, GasCheck G is available in three distinct versions; G1, G2 and G3 with varied capabilities. Features can be easily added to upgrade the instrument without it having to be returned to the factory

Extend your instrument warranty

Your GasCheck G instrument warranty may be extended by simply registering your product on the Ion Science website within one month of purchase. Visit www.ionscience.com/instrument-registration to take advantage of this offer.

Applications include
  • Industrial
  • Quality Assurance
  • Manufacturing
  • Laboratory
  • Medical
  • Research
Accessories

GasCheck G is supplied with an exclusive range of accessories. Visit www.ionscience.com/gascheck for more info.

TECHNICAL SPECIFICATION
DETECTORMicro thermal conductivity detector (MTCD) Sensor is poison resistant with over range protection
OPERATIONBattery Type: 4 x alkaline AA size or NiMH (rechargeable)
Typically 40 hours life
SENSITIVITY (cc/sec)He 1 x 10 -5 , CH 4 5 x 10 -5 , R12 5 x 10 -5 , Ar 1 x 10 -4
ACCURACY– 5% Displayed reading – One digit
RESPONSET90 = 1 second rise and clear down
SOUNDFlashing LED and 90 dBA (at 10 cm) audible sounder
CALIBRATIONFactory calibrated to fully documented procedures in accordance with our ISO 9001:2008 Quality Management System
DATA LOGGING10 data points (available for G3 only.)
TEMPERATUREOperating: -20 to +60 C, -4 to 140 F
Storage: -20 to +70 C, -4 to 158 F
Humidity: 0 to 99% RH (non-condensing)
FLOW RATE2 cc/min
TEMPERATUREOperating: -20 to 60 0 C, -4 to 140 0 F
Storage: -20 to 70 0 C, -4 to 140 0 F
Humidity: 0-99% RH (non condensing)
WEIGHT & DIMENSIONSInstrument with probe: 390 x 60 x 49 mm, 15.5 x 2.3 x 1.9”
Case: 420 x 320 x 97 mm, 16.5 x 12.5 x 3.8”
Instrument: 0.45 kg, 1 lb, Packed 1.6 kg, 3.5 lb
Export Info
Made inUnited Kingdom
Harmonized Tariff Code (HTC)90271000

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    9 Items found.
PAXSRXML-X
(7085)

ION SCIENCE  PAXSRXML-X

Ion Science Panther Thermal Conductivity Gas Leak Detector with advanced internal piezo pump, built-in gas table with a large range of gases like for Hydrogen (H2), Helium (He), Sulphur Hexafluoride (SF6), Carbon Dioxide (CO2), Methane (CH4), Argon (Ar), Oxygen (O2) or refrigerants. Rapid and sensitive. Colored LCD display, Flashing LED alarms and Loud audible sounder. Lithium-ion Rechargeable Battery. IP44. Includes plastic case, probe sleeve, mains plug with EU, UK, US and AUS adaptors, box spanner, USB cable. OPTIONAL Panther Pro version with datalogger and Bluetooth to connect with Tiger PC software, includes premium case, 20 cm Flexi Probe, probe sleeve, mains plug with EU, UK, US and AUS adaptors, box spanner, USB cable and Bluetooth dongle.

Configure

$4,057.20
GG2SAXXX-X-O2
(5019)

ION SCIENCE  GG2SAXXX-X-O2

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Oxygen (O2). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-AR
(5018)

ION SCIENCE  GG2SAXXX-X-AR

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Argon (Ar). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-CH4
(5017)

ION SCIENCE  GG2SAXXX-X-CH4

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Methane (CH4). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-CO2
(5016)

ION SCIENCE  GG2SAXXX-X-CO2

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Carbon dioxide (CO2). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-SF6
(5015)

ION SCIENCE  GG2SAXXX-X-SF6

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Sulphur Hexaflouride (SF6). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-R12
(5014)

ION SCIENCE  GG2SAXXX-X-R12

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Refrigerants (R12, R1301, R134a, R22, R11, R502, R404a, R407c, R410a or R507). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG2SAXXX-X-HE
(5013)

ION SCIENCE  GG2SAXXX-X-HE

Ion Science GasCheck G2 Micro Thermal Conductivity Leak Detector (MTCD) for Helium (He). Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther ***

Configure


GG3SAXXS-X
(5020)

ION SCIENCE  GG3SAXXS-X

Ion Science GasCheck G3 Micro Thermal Conductivity Leak Detector (MTCD). Full choice of gas and measurement units by user. Rapid and accurate. LCD back lit display, LED indicator and audible sounder. Low cost operation. *** Phased Out replaced by Panther *** Detects Hydrogen, Helium, Sulphur Hexaflouride, Carbon dioxide, Methane, Argon, Oxygen and many refrigerants. *** Phased Out replaced by Panther Pro ***

Configure


> HYDROGEN :    23 Items found.
M001-0019-000
(6329)

MPOWER  M001-0019-000

mPower UNI MP100 Portable Single Gas Detector for detection of Hydrogen (H2) 0-1000ppm or 0-2000ppm. Includes large LCD display, 6 Bright Red Flashing LED, Vibrating and 90dB Audible Alarm Port. IP67, Event Logger, ATEX and UL approval for Class I Div 1.

Configure

$278.40
P-3634
(6776)

PROSENSE  P-3634

Prosense P-3634 Gas Detector with Electrochemical sensor for Hydrogen (H2) with ranges 0-500ppm to 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. ATEX/IECEx approval (Zone 1 or Zone 2). IP65, Optional IP66 Adaptor.

Configure

$540.54
PQN-3634-1/2
(6948)

PROSENSE  PQN-3634-1/2

Prosense PQN-3634 Gas Detector with Electrochemical sensor for Hydrogen (H2) with ranges 0-500ppm, 0-1000ppm or 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. ATEX/IECEx (Zone 1, Zone 2 or M2), UL/CSA (Class I Div 1), UKCA or INMETRO approval, optional SIL2. IP65, Optional IP66 Adaptor and remote display.

Configure

$720.72
BWS1-R-Y
(6387)

BW  BWS1-R-Y

BW Solo Serviceable Single-gas Detector for Hydrogen (H2) 0-1000 ppm. Small and lightweight. One button operation, 3.6V 1.65Ah Lithium Battery. Visual, vibrating and audible alarms. Optional wireless version. IP66/68. ATEX, IECEx and CSA approvals for Class I Div 1.

Configure


PQD-3634-1/2
(6737)

PROSENSE  PQD-3634-1/2

Prosense PQD-3634 Gas Detector with Electrochemical sensor for Hydrogen (H2) with ranges 0-500ppm, 0-1000ppm or 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. OLED Display. ATEX/IECEx (Zone 1, Zone 2 or M2), UL/CSA (Class I Div 1), UKCA or INMETRO approval, optional SIL2. IP65, Optional IP66 Adaptor.

Configure

$875.16
SPSTAXG1
(1487)

HONEYWELL  SPSTAXG1

Honeywell Zareba Sensepoint Gas Detector Transmitter for Hydrogen (H2) with pre-wired universal junction box (1 threaded M20, 1 clearance 3/4"NPT, 1 clearance 1/2" NPT, 3 approved stopping plugs, earth continuity plate) and factory set toxic gas sensor. 2 wire 4-20mA loop output. ATEX Approved. (Optional ranges: 0-1000 ppm, 0-10000 ppm)

Configure

$929.07

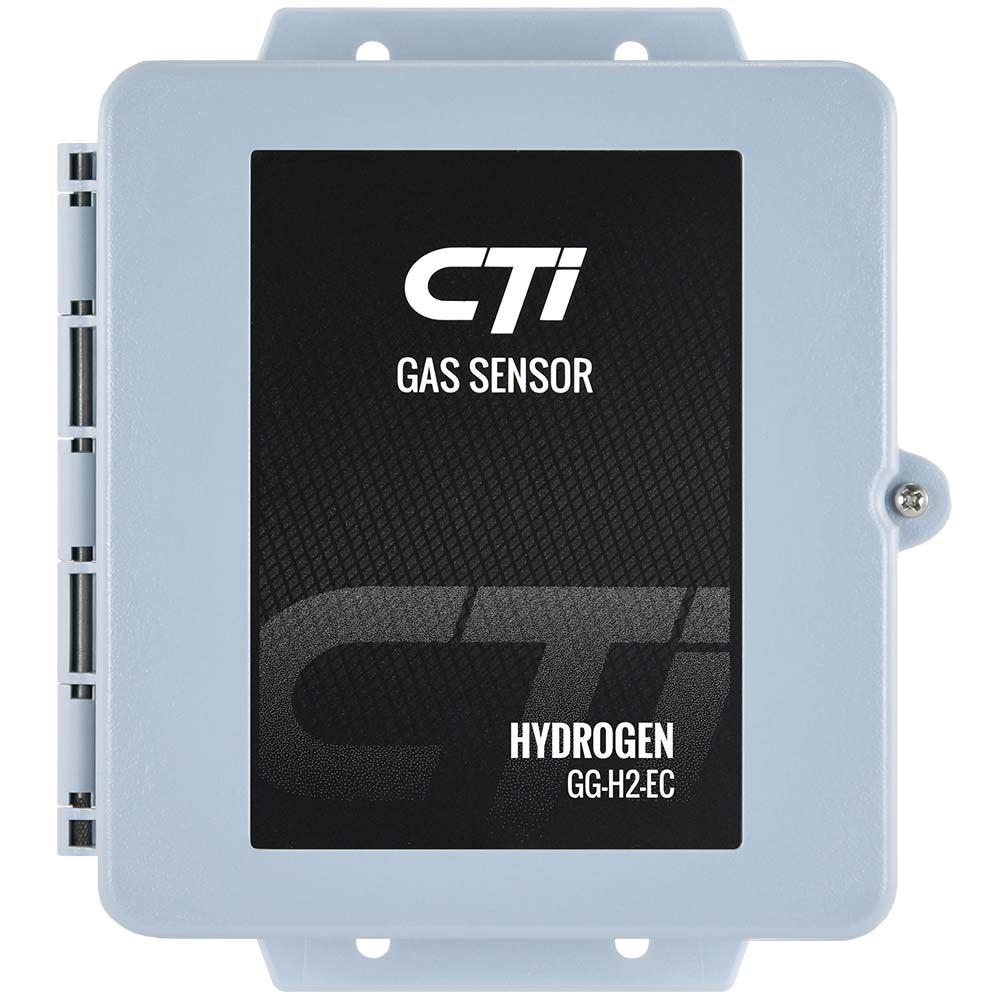

GG-H2-EC-2000
(2965)

CALIBRATION TECHNOLOGIES  GG-H2-EC-2000

CTI GasGuard H2 Hydrogen Catalytic Bead Sensor 0-1% (10000 ppm or 25%LEL) for gas leak detection in battery charging rooms, steel industry, refineries and others. No false alarms. 4-20 mA output, 24VDC power supply and NEMA 4X polycarbonate enclosure.

Configure

$1,122.00
2106B1416
(1462)

HONEYWELL  2106B1416

Honeywell Sieger Sensepoint Gas Detector Transmitter for Hydrogen (H2) (0-1000 ppm to 0-10000 ppm) with Surecell Toxic Sensor. 2 wire 4-20mA loop output. ATEX/IECEx CSA Class I Division 2 Certified.

Configure

$1,135.98

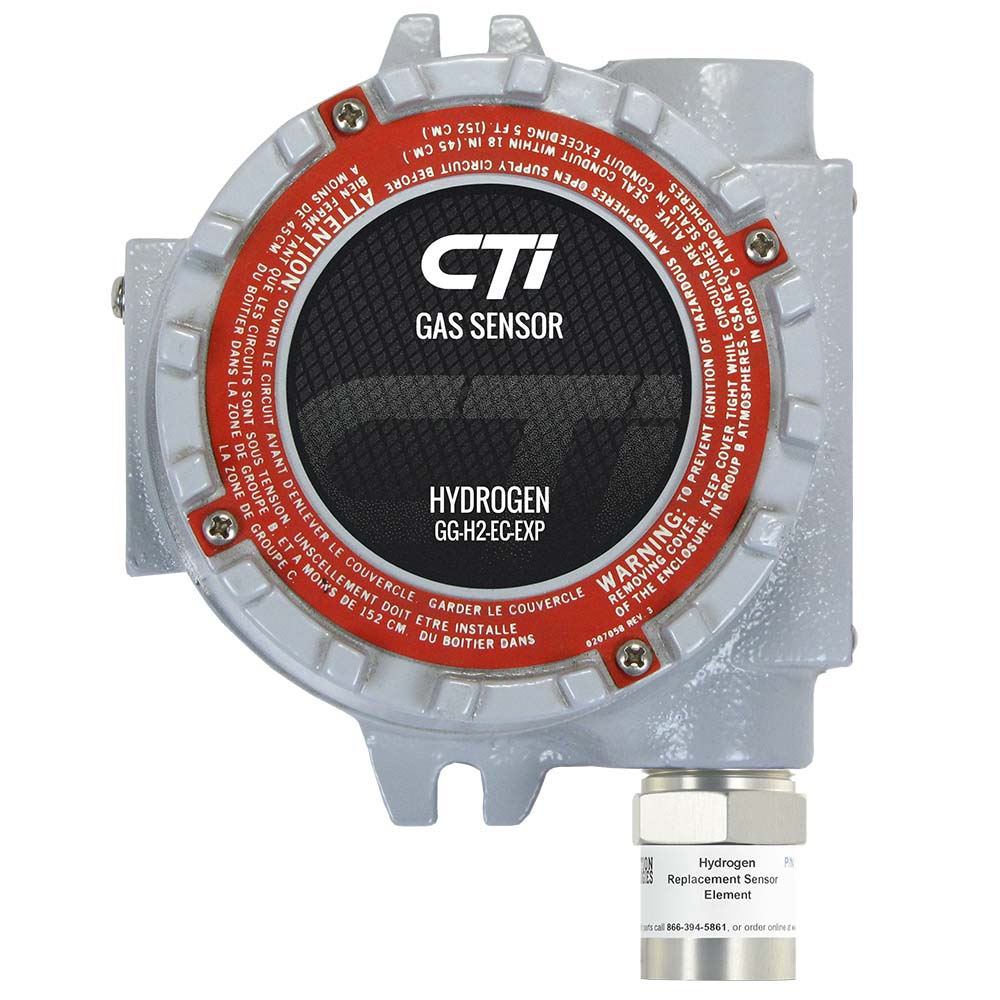

GG-H2-EC-10000-EXP
(5978)

CALIBRATION TECHNOLOGIES  GG-H2-EC-10000-EXP

CTI GG-H2-EC-EXP Explosion Proof Electrochemical Gas Sensor for Hydrogen (H2) 0-2000 ppm and 0-10000 ppm. 4-20 mA output, 24VDC power supply. Explosion Proof Copper-free aluminum enclosure for Class l, Div 1 & 2, Groups B, C & D. CSA, UL, FM, ATEX and IECEx approved.

Configure

$1,383.00
100-0008-SS/100-0015-H2
(4753)

ESP SAFETY  100-0008-SS/100-0015-H2

ESP Safety Vector 2-channel gas detector controller with smart Plug-In sensor included to detect Hydrogen (H2) 0-4% vol or 0-100ppm (Catalytic bead or electrochemical). Operates as a stand-alone display for a variety of ESP sensors which can be remotely located up to 500 feet away over 4-wire RS-485. Sensor head can also be attached. Includes analog 4-20 current loop with HART, Digital RS-485 Modbus RTU and 4 relays. 96-Character OLED Screen. 316 Stainless Steel or Aluminum Explosion-proof housing. IP67. SIL 2, FM/CSA Class I Division 1 certification. Optional 2nd sensor available.

Configure

$1,440.00
SPXCDULNG1
(665)

HONEYWELL  SPXCDULNG1

Honeywell XCD Sensepoint Gas Detector, Hydrogen (H2) Electrochemical Sensor with aluminium housing (optional stainless steel), stainless steel sensor head, tri-color backlit LCD Display, explosion-proof IP66 for hydrogen (H2) 3-wire 24 VDC power, include 2 programmable alarm relays, 1 programmable fault relay, 4-20mA output (sink or source selectable); Modbus RTU option available. User-Selectable full scale range 1,000ppm only. UL/CSA Class I Division 1 or ATEX (Zone 1) IECEx available.

Configure

$1,566.91

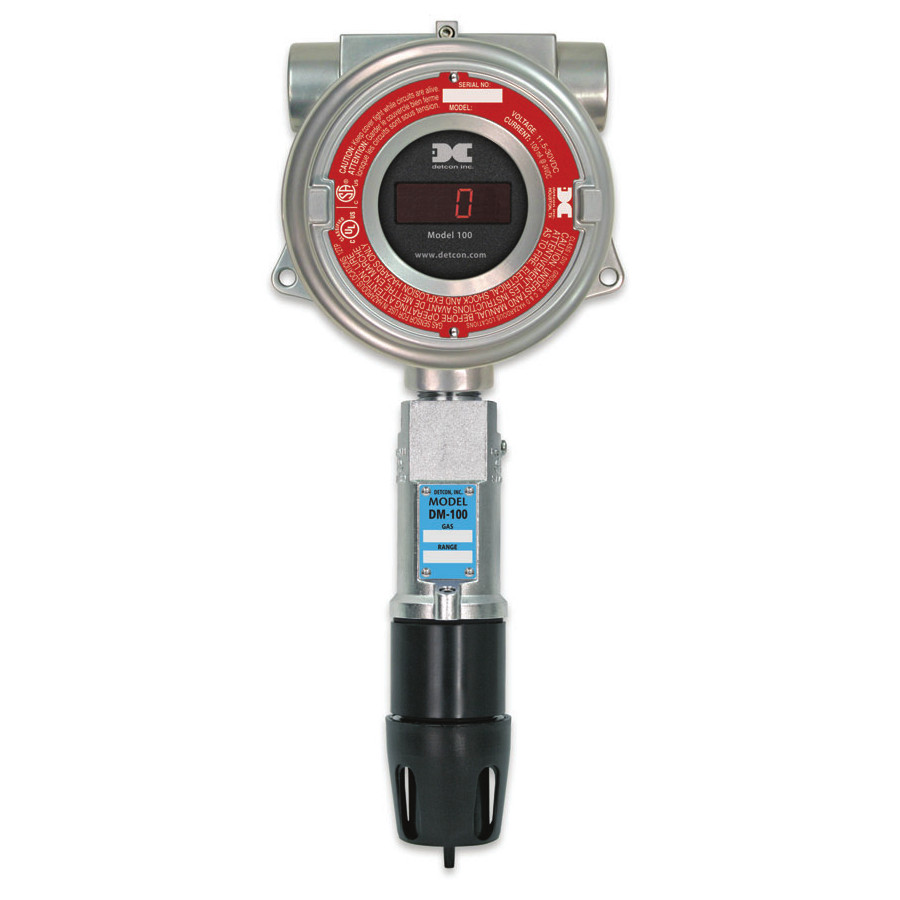

961-070026-01PG
