PROSENSE   PM-FDS303-03-M20

SKU# (7740)

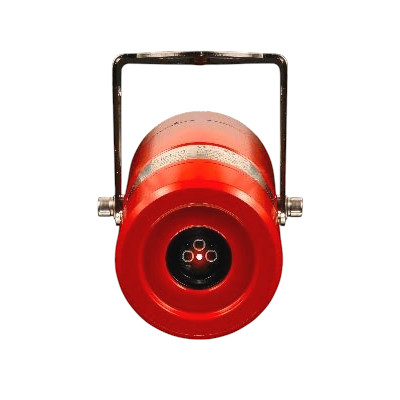

PROSENSE PM-FDS303-03-M20

DETECTORS / FLAME DETECTORS
IR3

$2,421.36  [In Stock]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
Prosense PFDS303 Multi Spectrum Triple IR (IR3) Flame Detector, Explosion proof for harsh environments. Adjustable sensitivity levels, configurable alarm/fault relays, 0-20 mA and HART outputs, 24VDC. IP67. FM, ATEX, IECEx, INMETRO and SIL2 approvals (Pending).

0-20 mA   RELAYS   FM   ATEX   IECEX   INMETRO   SIL2   HART

PM-FDS303-03-M20
2,421.36

Enclosure
Entries
Shade

  [  In Stock  ]

Standard configurations typically available in In Stock:
PM-FDS303-03-M20-20
8 Variants of base SKU

Designed for hazardous industries where fast fire detection is critical and nuisance alarms are not an option.

The PFDS303 is an explosion proof Multi Spectrum IR flame detector. The device delivers superior performance, responding to hydrocarbon liquid fuel and gas fires at long distances.

The PFDS303 compliments the PFDS301 and PFDS300 Visual Flame Detectors by delivering superior performance in the detection of hydrocarbon fires which are not detectable in the visible spectrum. The PFDS303 utilises the latest IR flame detection algorithms to ensure maximum false alarm immunity.

Applications

Typical applications include:

  • On/Offshore Oil and Gas Processing Facilities
  • Refineries
  • Petrochemical Plants
  • Chemical Facilities
  • Pharmaceutical
  • Aircraft Hangars
  • Road Tunnels
  • Power Generation
  • Tank Farms
  • Road & Rail Loading Racks
  • LNG / LPG
  • Warehouses/ Storage Areas
  • Waste Recycling/ Biomass Plants
  • Printing Industry
Features and Benefits
  • Multi Spectrum IR design delivers long detection distances and enhanced false alarm immunity
  • Continuous optical test
  • Verifies operation and improves device up-time
  • Microprocessor controlled heated optics
  • Maintains operation in harsh weather conditions (snow, ice, condensation)
  • International hazardous area approvals
  • FM / ATEX / IEC Ex / INMETRO / PESO / ECAS
  • Certified performance testing to multiple fuels
  • FM 3260
  • EN 54-10
  • Adjustable sensitivity levels
  • Application flexibility
  • Ensure detectors do not cross vote
  • External testing with a long-range flame simulator
  • Minimizes the need for scaffolding
  • External testing and calibration with a long range flame simulator
  • Easy integration using industry standard outputs:
    • Configurable Alarm and Fault Relays
    • 0-20mA
    • HARTŪ
  • Certified SIL 2 capable
  • 5 year warranty
Certification

FM approvedbr Class 1 Div 1, Groups B, C, D
T4 Class 1 Zone 1 AEx/Ex db
IIC T4 Ambient: –50°C to +85°C
ATEX II 2 G Ex db IIC T4 IECEx
Ex db IIC T4
Ambient: –60°C to +85°C
INMETRO Ex db IIC T4
PESO Ex db IIC T4
Ta= -60°C to +85°C
Performance approvals
FM 3260
EN 54-10
IEC 61508:
Certified SIL 2 Capable
Marine:
DNV GL Type
ABS Product Assessment

Specifications
Operating Temp -76°F to +185°F (-60°C to +85°C)
Storage Temp -76°F to +185°F (-60°C to +85°C)
Humidity 0 to 93% RH non-condensing
Operating Voltage 24 Vdc Nominal - (Range 18 to 32 Vdc)
Power Consumption 3 W minimum (without heater), 12 W at 32 Vdc with heater on maximum.
Field of View 90° horizontal by 90° vertical
Speed of Response ~5 seconds (Typical)
<1 second (Ultra Mode)
Dimensions 4" Dia x 8" L (inches)
100 mm Dia x 200 mm
Material Copper free aluminum or 316 stainless steel
Entry size 3/4 inch NPT or M25, Single or Dual.
Weight Aluminum 5.5 lbs (2.5 Kg)
Stainless steel 13.2 lbs (6 Kg)
Outputs Configurable relay contacts (SPST 2A at 30Vdc) - alarm and fault.
0-20mA, HARTŪ
Ingress IP67 | NEMA type 6P
Export Info
Made inTurkey
Harmonized Tariff Code (HTC)9031808080

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping & Handling

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    1 Items found.
PM-2200.0700
(7741)

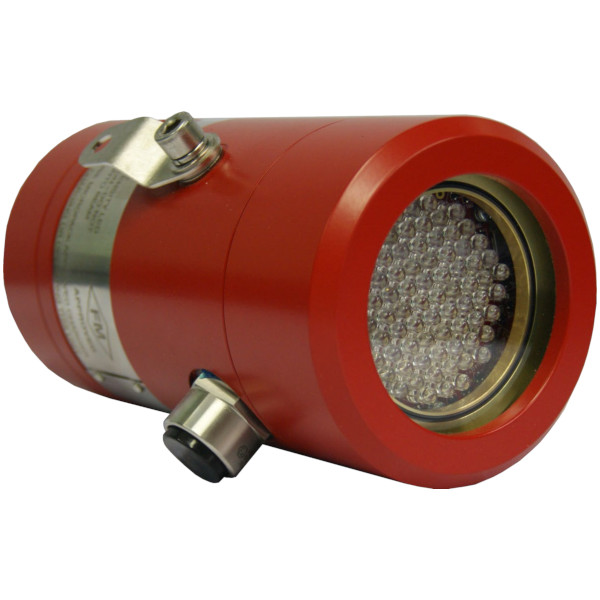

PROSENSE  PM-2200.0700
