NOTIFIER   B114LP

SKU# (7486)
NOTIFIER B114LP

ACCESSORIES & PARTS / ACCESSORIES
NOTIFIER

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

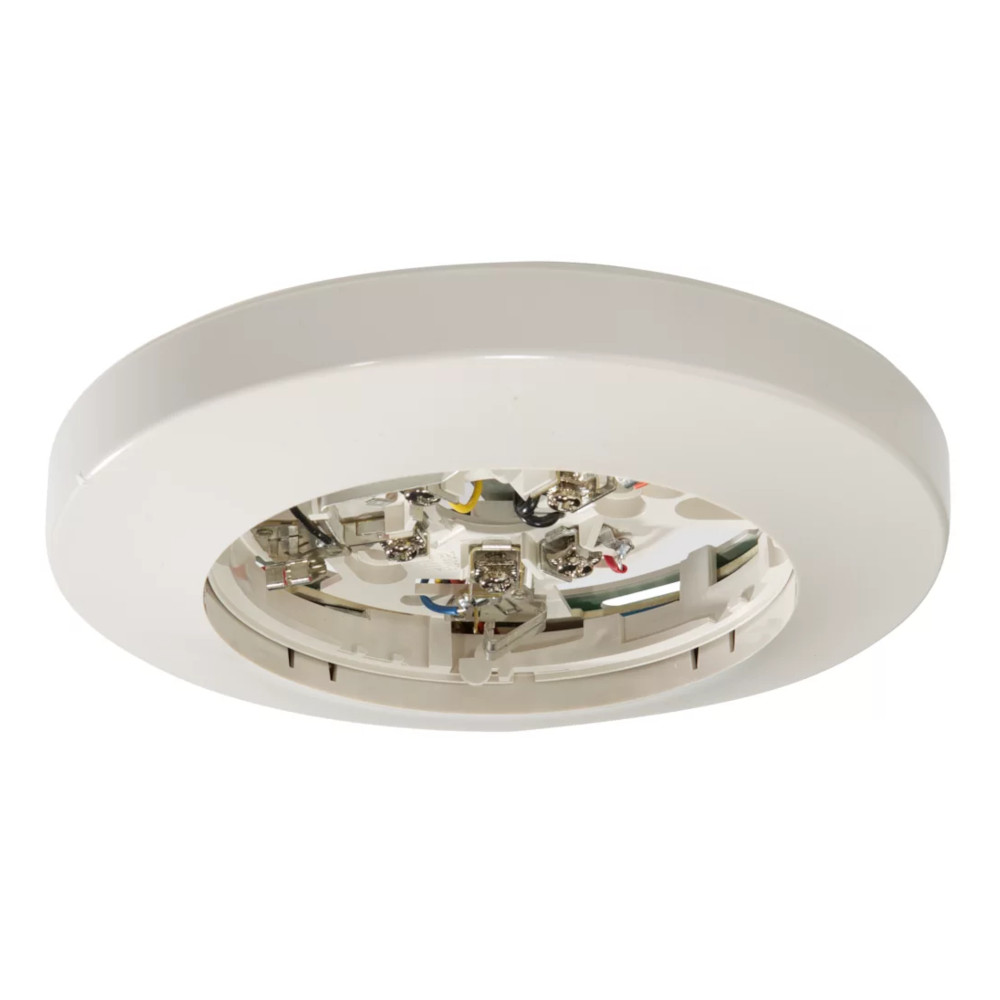

System Sensor B114LP Smoke Detector Base for use with System Sensor photoelectronic detector heads. 120 VAC. UL and ULC listed.

Please Email us your request for quote

  [  3 Weeks  ]

B114LP bases are designed for use with System Sensor® photoelectronic and ionization detector heads. The capability of plugging these detectors into a variety of special bases makes them more versatile than equivalent direct-wired models. B114LP bases are intended for use in 4-wire systems with terminals provided for remote annunciator and relay connections.

Certifications Features list:
  • UL Listed 268A
  • ULC Listed

For use with the following smoke detectors: US - 1151, 2151, 2151T; CANADA - 1151A, 2151A, 2151TA; EUROPE - 1151E, 2151E

The model B114LP detector base is designed for use with System Sensor model 2151 photoelectronic and 1151 ionization detector heads. This four-wire base is equipped with screw terminals for the connection of power, ground, relay connections, and an optional RA400Z/RA100Z remote annunciator. It also includes a resistor that limits current when the associated smoke detector is in the alarm state.

SPECIFICATIONS
Base Diameter: 6.2 in (157 mm)
Base Height: 0.95 in (24 mm)
Weight: 0.6 lb (274 g)
Mounting: 4˝ square box with or without plaster ring, minimum depth 1.5˝; 4˝ octagon box, minimum depth 1.5˝;
31⁄2˝ octagon box, minimum depth 1.5˝; 31⁄2˝ octagon box, minimum depth 1.5˝
Operating Temperature Range: 0°C to 49°C (32°F to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity Non-condensing
Electrical Ratings (includes base and detector)
System Voltage: 120 VAC, 60 Hz
Relay Contact Ratings Resistive Load: Form A — 2.0A @ 30VAC/DC; Form C — 2.0A @ 30VAC/DC, 1.0A @ 125VAC (If used, the RA400 Remote Annunciator and RTC
Start-up Time (after 60 second reset): 36.0 seconds maximum
