E2S   D2xCF7CS2FMN1A1R

SKU# (7450)



E2S D2xCF7CS2FMN1A1R

ALARM SIGNAL DEVICES / CLASS I DIV 2
HORN + BEACON

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

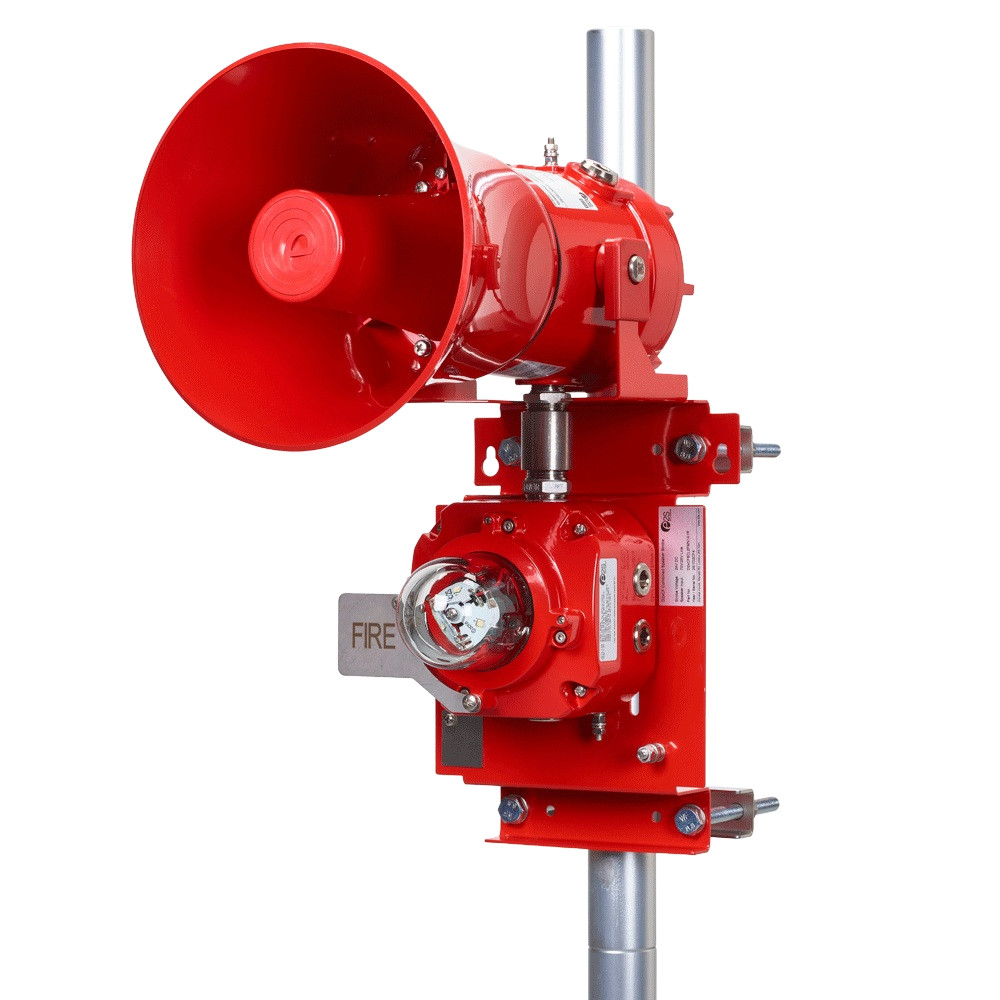

E2S D2xCF Horn/Speaker 123dB(A) and 10 Joule Strobe for hazardous locations. High output. Type 4/4X IP66 aluminium enclosure. Dual 1/2"NPT entries. 64 alarm tones. UL/ULC, CSFM, IECEx and ATEX Approved for Class I Div 2, Class II Div 2 and Class I Zone 2/22.

UL   ATEX   IECEX   DIV 2   ZONE 2

D2xCF7CS2FMN1A1R
Please Email us your request for quote

Strobe Type
Horn or Speaker Type

  [  2 Weeks  ]
2 Variants of base SKU

The D2xCF is the optimum solution for public mode fire alarm signalling in hazardous locations. With a choice of either alarm horn or speaker the factory assembled configuration integrates the audible signal with a high output 79.3cd output LED strobe or 70.29cd Xenon.

Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosures with 316L stainless steel back plate – approved for Class I/II Division 2 and Class I Zone 2/22 applications. The D2xCF combines the industry leading D2xB1LD3 LED or D2xB1XH2 Xenon strobe with a 123dB(A) horn or 15W or 25W speaker. The strobe utilises an array of super high power Cree® LED’s, orientated to optimise visibility. The alarm horn employs class D amplification to provide a high sound output at optimum operating current.

Features:
  • UL464 and CAN/ULC-S525
  • UL1480 and CAN/ULC-S541
  • UL1971 & UL1638 and CAN/ULC-S526
  • Public & private mode fire use
  • Automatic synchronization on multi-horn & strobe systems
  • Alarm horn: integrated tone generator with 64 alarm tones
  • Speaker: 15W or 25W models with 25/70V transformer
  • Marine grade aluminium enclosure
  • Ingress protection Type 4/4X/3R/13, IP66
  • High impact resistant Borosilicate glass lens
  • Supervisory diode – duplicated terminals
  • Dual 1/2"NPT entries with haz loc rated stopping plugs
  • 316L stainless steel back plate
  • Supplied with stainless steel pole mount kit
Approvals:
  • Component listings:
    UL File ref: E230764
    CSFM listing: 7136-2279:0501
    IECEx cert: IECEx ULD 14.0004X
    ATEX cert: DEMKO 14 ATEX 4786493904X
Coding:
  • NEC/CEC Class Div
    Class I Div 2 ABCD T1 Ta -40° to +122°F
    Class II Div 2 FG T4 Ta -40° to +122°F
    Class III Div 1&2 Ta -40° to +122°F
  • NEC Class Zone
    Class I Zone 2 AEx ec IIC Gc T1 Ta -40° to +122°F
    Zone 22 AEx tc IIIB T75°C Dc Ta -40° to +122°F
  • CEC Class Zone
    Class I Zone 2 Ex ec IIC Gc X T1 Ta -40° to +122°F
    Zone 22 Ex tc IIIC T75°C Dc X Ta -40° to +122°F
  • IECEx & ATEX
    II 3G Ex ec IIC T1 Gc Ta -40° to +122°F
    II 3D Ex tc IIIC T75°C Dc Ta -40° to +122°F
    Above represents minimum assembly coding.
    See component product manuals for full coding.

Specification
Horn option Model : D2xS2F – part code ref: S2F
Maximum output: High power: 123dB(A) @ 1 m [114dB(A) @ 10ft/3m] +/- 3dB
Default power: 120dB(A) @ 1 m [111dB(A) @ 10ft/3m] +/- 3dB
Nominal output: High power: 120dB(A) @ 1m [111dB(A) @ 10ft/3m] +/- 3dB
Default power: 117dB(A) @ 1m [108dB(A) @ 10ft/3m] +/- 3dB
Synchronization: Automatic synchronization
Volume control: Full range
Speaker option Model : D2xL1F – part code ref: L1F
Sound output: 101dB @ 1W @ 1m [92dB(A) @ 10ft/3m] (Pink) +/- 3dB
113dB @ 15W @ 1m [104dB(A) @ 10ft/3m] (Rated) +/- 3dB
120dB(A) @ 1m at 1.3Khz [111dB(A) @ 10ft/3m] (Max)
25/70v line tappings: 15W/7.5W/5W/4W/2W
25V: z=41.67/83.34/125/156.25/312.5K Ohm
70V: z=326.67/653.34/980/1.225K/2.45K Ohm
Speaker option Model : D2xL2F – part code ref: L2F
Sound output: 104dB @ 1W @ 1m [95dB(A) @ 10ft/3m] (Pink) +/- 3dB
119dB @ 25W @ 1m [110dB(A) @ 10ft/3m] (Rated) +/- 3dB
124dB(A) @ 1m at 1.3Khz [115dB(A) @ 10ft/3m] (Max)
25/70v line tappings: 25W/12.5W/6W/2W/1W tappings
25V: z=196/392/816.67/1.225K/2.45K/4.9K Ohm
70V: z=25/50/104.17/156.25K/312.5K/625 Ohm
Xenon option Model: D2xB1XH2 – part code ref: 7C
Source: Xenon strobe 10 Joules (10Ws)
Modes: 1Hz flash (60 fpm)
Effective cd: 70.29 cd – UL1971
Xenon option Model: D2xB1LD3 – part code ref: 8C
Source: Array of 3 x High Power Cree® LED’s
Modes: 1Hz flash (60 fpm), 1.3Hz flash (80 fpm)
1.5Hz flash (90 fpm), 2Hz flash (120 fpm
Eff. Intensity cd: 79.3 cd UL1971 Public mode fire
107.5 cd UL1638 Private mode fire
252.0 cd UL1638 General signaling
LED life: >60,000 hours
General data
Ingress protection: EN60529:IP66, UL50E/NEMA250:4/4X/3R/13
Enclosure material: Marine grade LM6 aluminum alloy – Chromate & powder coated finish
Lens material: Toughened borosilicate glass
Cable Entries: 2 × 1/2"NPT – Nickel Plated Brass plugs included
Terminals: 0.5 – 2.5mm² (20-14AWG) – 12AWG solid core conductor Pluggable & duplicated terminals
Line monitoring: Supervisory/Blocking diode included EOL Min. 1K Ohm 2W, or 3K9 Ohm 0.5W resistor
Operating temp: -40 to +50°C [-40° to +122°F]
Storage temp: -40 to +70°C [-40° to +158°F]
Relative humidity: 99% – tropicalised/conformal coated electronics
Weight: 8.0Kg/17.63lbs
Export Info
Made inUnited Kingdom
Harmonized Tariff Code (HTC)8531800010
