Name: PROSENSE S-DP4 MULTI-POINT CONTROLLERS 4-CHANNEL
Brand: PROSENSE
SKU: 6764
Availability: Discontinued

PROSENSE S-DP4

DESCRIPTION
FEATURES
SPECIFICATIONS
LITERATURE

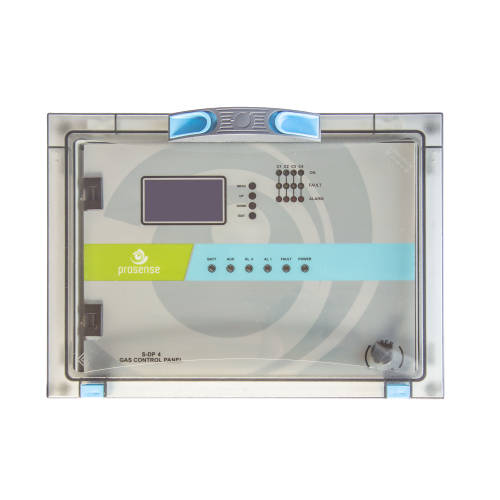

Prosense S-DP4 Gas Detector Controller, Alarm Panel for Up to 4 Analog 4-20 mA gas detectors. Monitors explosive (LEL) and toxic(ppm, %VOL), Alarm and Fault LED indicators for each detector and buzzer. Fault, Alarm1, Alarm2 and AUX Relays. Optional Modbus RS485 output and Alarm/Fault Relays for each channel. Polycarbonate Housing, IP66 *** Phased Out *** Replaced by 700-DPX

Inquiry

Input: 4 x 4-20mA analog and 1 digital(24VDC) input allows to the user managing detectors with integrating other equipment to the systems like emergency button.
Display: Bright and clear LCD display
Integrity: Easy integration to SCADA systems via Modbus RS485 output
Relays: 2 Alarm, 1 Fault and AUX adjustable relay contacts. Up to 12 extra relay outputs for specific applications
Logging: Stores all alarm, fault and maintenance events up 24logs to provide a history of detectors connected
Monitoring: Continuously monitoring of 4 detector gas concentrations
Remote Control: Up to 16 S-DP4 control panel can be monitored in one center via Prosense Gas Monitoring software.
Diversification: Different gases in different measuring ranges(ppm,LEL,VOL) can be connected
Body: PC(Polycarbonate) superb performance under harsh environmental conditions with IP66 protection class.
Visual/Audial: Independent Alarm and Fault LED indicators for each detector and buzzer
Modular: Modular structure allows the user specific installation and provide efficiency during the maintenance.

S-DP4 Specifications
Input	4 x Analogue 4-20mA 1 Digital Input
Monitoring	Simultaneously monitoring measurements, alarm and fault status
Relay Outputs	Programmable Fault, Alarm1, Alarm2, AUX contacts Adjustable NO/NC contacts Optional Alarm1, Alarm2 and fault relays for each detector
Data Logging*	Storages Alarm, Fault and maintenance logs up to 24 event
Display	Graphic LCD 128x64
LED Indicators	6 LED indicators for Alarm1, Alarm2, Fault, AUX, Battery and Power LED indicators
Buzzer	YES
Programming	User friendly software enables easy programming with 4 buttons on panel door
Software Monitoring	Up to 16 panels can be monitored via Prosense Gas Monitoring software remotely
Power Supply	220 VAC +/‐10% - 110VAC +/-10%
Main Power Fuse	2A
Power Consumption	27VDC/250mA‐4,5W max. without connected detectors
Backup Battery	2x12V 7A/h (Optional)
Backup Battery Fuse	2A
Ingress Protection	IP66
Humidity	10‐95%RH Non-Condensing
Operating Temp.	‐20 ̊ to + 60 C̊
Cable Gland	PG11, IP66
Panel Material	PC (Polycarbonate), Halogen-free, Silicon-free, Durable 960' Hot Wire Experiment, Resistant to UV Rays
Dimensions/Weight	366x276x186mm / 4.25 KG
Mounting	Modular Structure
*This features is unable for S-DP4 and S-DP8 when monitoring via software.

Export Info
Made in	Turkey
Harmonized Tariff Code (HTC)	8531100045
