CALIBRATION TECHNOLOGIES   M255

SKU# (7588)



CALIBRATION TECHNOLOGIES M255

GAS DETECTION CONTROLLERS / MULTI-POINT CONTROLLERS
4-CHANNEL

$5,285.53  [In Stock]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
CTI GasMark M255 Gas Detection Control Panel. 10" Color Touchscreen. Supports up to 255 Modbus devices. Includes 4 RS-485 channels, 8 analog inputs, 8 relay outputs, and 8 discrete inputs. 24VDC power supply for detectors. Optional M-XM expansion modules. UL and CSA listed.

RELAYS   UL   CSA   UL   MODBUS

M255
5,285.53

Options

  [  In Stock  ]
Key Features
  • Supports up to 255 CTI Modbus addressable devices
  • (4) RS- 485 channels for sensor wiring
  • Distributed I/O with optional M- XM expansion modules
  • 10" color touchscreen
  • 8 analog inputs, 8 relay outputs, and 8 discrete inputs
  • 4 alarm setpoints per channel plus TWA, STEL, and fault
  • TWA and STEL time- weighted averaging with alarm setpoints
  • Large power supply for detectors and external horn/strobes
  • USB port for fast field programming, updates, & configuration backup
  • Alarm Log records and stores every event
  • Ethernet IP over Ethernet, Modbus and BACnet over RS- 485 & Ethernet, for PLC/BAS connectivity

Flexible meets Powerful. The GasMark M255 gas detection control panel.

The M255 can interface to, but operate independently of plant control systems for a reliable stand- alone safety system. The M255 comes standard with four Modbus channels with a capacity of 255 devices, eight analog input channels, and eight onboard relays, user programmable to trigger upon any event for any sensor or group of sensors.

The 10" color touchscreen displays real- time status of gas detector concentrations and alarms, and allows for easier programming via a user- friendly menu system. A USB port allows for easy field software updates, provides a means to backup system programming, and allows for datalogging downloads.

The M- XM expansion modules are intended to provide users with options to increase the number of analog and discrete inputs and relay and analog outputs for the M255 controller. All modules allow an operator to monitor and/or control connected devices from the M255. This modular design provides users with the ability to tailor the network to the unique needs of their facility.

Applications
  • Food Processing areas
  • Refrigeration Systems
  • Chemical Plants
  • Cold Storage
  • Parking Garages
  • Perimeter Monitoring
  • Compressor Rooms
  • Sea Vessels
  • Warehouses.
Benefits Applications
  • Versatile for any application
  • RS-485 daisy-chain cuts cable installation cost by up to 50%
  • Remote I/O option with the M-XM expansion modules
  • Easy programming from touchscreen

Out of the box, the M255 is configured with default setpoints loaded in the software. Easily enter the zone location names and adjust alarm setpoints as necessary.

The onboard power supply is large enough to power most connected detectors and external 24 VDC horn/ strobes. For larger systems, additional power supplies can be installed along the bus when needed.

SPECIFICATIONS
Input Power Requirements: 120 VAC, 5.5A, 50/60Hz
240 VAC, 3.5A, 50/60Hz
Output DC Power: 24 VDC, 6.5A @ 86 °F (30°C)
24 VDC, 4A @ 104 °F (40°C)
Communications: RS-485 Modbus RTU, 4 channels, compatible with CTI Modbus capable device models only.
Analog Inputs: (8) 4- 20 mA, 251 Ohm input impedance.
Capacity: 255 devices.
Cable Recommendation: Communication: RS-485 communication cable, 22 AWG, 2 conductor, twisted pair, shielded, stranded, with drain wire (Alpha Wire 6460 or equivalent). 4,000 ft (1,220 m) per channel max.
Device Power: See detector manual for wiring details (typically 12 AWG, 2 conductor, stranded cable (General Cable C2410A or equivalent).
Analog Inputs: See detector manual for wiring details (typically 3-conductor, shielded, stranded, 18 AWG cable; General Cable C2535A or equivalent, up to 1500 ft).
Relay Outputs: (8) Programmable relays, SPDT, Form C dry contacts 5A @ 24Vdc or 8A @ 240Vac
(1) Dedicated Fault relay, normally energized, SPDT, Form C dry contacts 5A @ 24 Vdc or 8A @ 240 Vac.
Discrete Inputs: (8) Programmable discrete inputs, contact open/ closure only. Do not apply voltage.
Dimensions: 14.5" high x 19.5" wide x 6.2" deep (368mm high x 483mm wide x 158mm deep)
Weight: 15 lbs (6.8kg)
Enclosure: Polyurethane with neoprene gasket. Continuous stainless- steel hinge pin. Clasp- type latches with captive locking screw in latch. For indoor non- classified areas. Tighten capture screw on latch to 0.56 N- m (5.0 in- lbs).
Temperature Range: -4°F to 104°F (-20°C to 40°C)
Humidity Range: 0- 95% RH condensing
Terminal Block Plugs (Field Wiring): 26- 12 AWG, torque 4.4 in- lbs.
User Interface/Display: 10" (254mm) color, capacitive touch LCD.
Language: English only
Controller Functions: Real- Time Status Display: Displays gas concentrations and any current alarm conditions. TWA / STEL trending selectable
Adjustable Alarm 1, Alarm 2, Alarm 3, Alarm 4, TWA and STEL setpoints
Alarm Log: Records and stores 10,000 events for easy recall
Calibration Mode: Locks relay outputs for sensor calibration or maintenance
Relay Test Function: Allows for easy testing of relay output functions
Downscale Alarm Setting for Oxygen Monitoring
Certification: Nemko listed to UL 61010- 1, and CSA C22.2 No. 61010- 1- 12
Warranty: 2- years
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)8531100045

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping & Handling

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    1 Items found.
M1-R0
(7587)

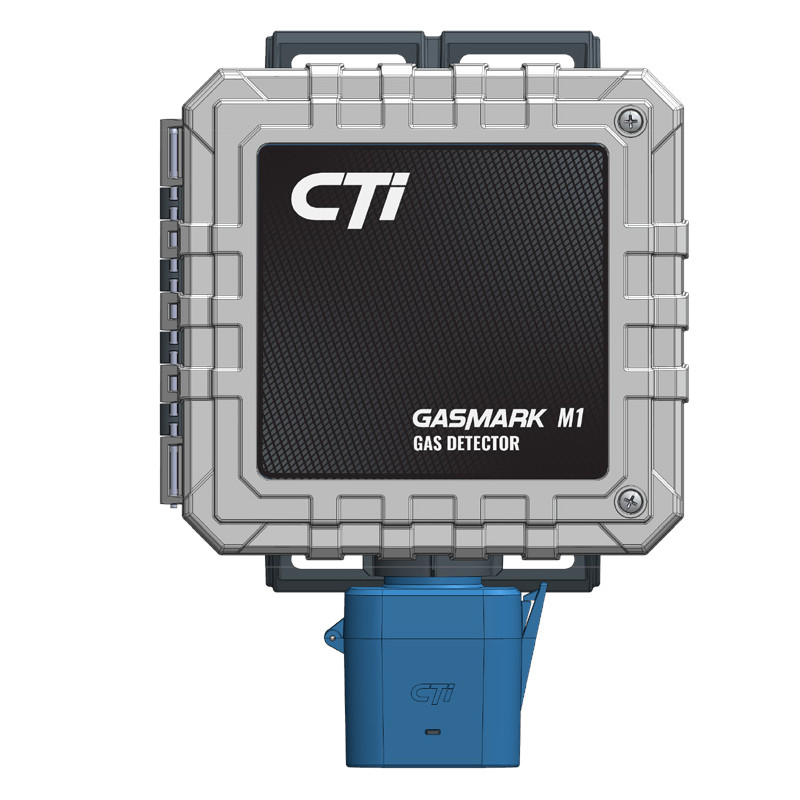

CALIBRATION TECHNOLOGIES  M1-R0
