Gas Leak and Flame Detectors, Analyzers, Alarm Devices and Calibration Gas

RC SYSTEMS  31001AL-0-9011/0100P/L0

RC SYSTEMS 31001AL___-0-9011/0100P/L0 (1)
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

RC Systems SenSmart 3100 3 wire gas detector for Carbon Monoxide (CO) 0-100ppm to 0-1000ppm with 'ST-48' smart transmitter. Includes Graphic LCD Display, LED indicator and 4-20mA output. 10-30 VDC. Aluminum or Stainless Steel enclosure. Suitable for Class 1 Div 1 (Explosion Proof).

Part# with Options:        31001AL-0-9011/0100P/L0
Price with Options:        1,722.50

Options:

Enclosure Type
(1) Enclosure Type for RC Systems 3000 Div 1
Model
(2) Model for RC Systems 3000
Output
(3) Output for RC Systems 3000
Sensor Range
(4) Sensor Range for RC Systems SenSmart CO
Splash Guard
(5) Splash Guard 10-0198 for RC Systems SenSmart Div1

Availability 2 Weeks  ]


The SenSmart 3000 3-wire gas detector is built with our reliable ‘ST-48’ smart transmitter, which provides the cutting-edge technology in toxic and combustible gas detection. It’s a universal, easy to use detector that supports dual smart sensor with different types, including electrochemical, Catalytic Bead, Infrared and Photoionization sensors.

FEATURES HIGHLIGHT
  • CSA Certified for Class I, Div 1 Locations
  • Graphic LCD display shows values, units, trend graph, alarm levels
  • Backlit display for better visibility in low light conditions
  • LED indication of alarm status
  • Dual smart sensor capable
  • Supports both local and remote sensors for easy installation
  • Non-intrusive, prompted calibration with programmable cal-gas
  • Power-up and post-calibration delays eliminate false alarms
  • Options for 3x 5A alarm contacts, isolated 4-20mA and MODBUS®
  • Aluminum “AL” XP model wtih Dual Sensor
  • Auto-recognition of Smart Sensors uploads calibration data and more
  • Real-time clock and calendar logs alarms, calibration and power-up events
  • Security mode allows locking of critical parameters
  • Fault supervision circuitry detects failed sensor and transmits warning
  • Setup in hazardous area requires only simple magnetic wand
  • Optional HART board available

OEM VERSION OF THE GDS CORP GASMAX II

SPECIFICATIONS
Power SupplyPower Input 10-30VDC at < 6.5 watts with relay board (all relay energized)
DisplayBacklit 64 x 128 pixel LCD with 30-minute trend, bar graph and engineering units display
Channel One InputElectrochemical toxic and oxygen sensors / 4-20ma current input
Channel Two InputCatalytic Bead, Infrared and Photoionization sensor / 4-20mA current input
Standard OutputDual 3-wire 4-20mA current source. Max loop R is 750 ohms with nominal 24VDC power supply
Optional OutputsDual isolated 4-20mA current source. Max loop Resistance is 650 ohms with nominal 24VDC; (form C , rated 5 amp at 30 VDC or 240 ~VAC RESISTIVE) MODBUS slave ports; 3x programmable alarm relays with 5A capability
TempElectronics -40°C to +60°C
HousingAluminum with epoxy paint standard; Optional #316 stainless steel, Optional Ul94 Poly Black Plastic Enclosure
Dimensions(Aluminum) Width 5.4” (137 mm), Height 8” (203 mm), Depth 5” (127 mm) Shipping weight 6.5 pounds (3 kg)
(Poly) Width 5” (127 mm), Height 7” (178 mm), Depth 4” (101 mm) Shipping weight 3 pounds (2 kg)
CSA ApprovalsCast Aluminum Enclosure:
Explosion-Proof Cl 1 Div 1 Gr ABCD with 10-0247 (includes sinter)
Non-Incendive Cl 1 Div 2 Gr ABCD with 10-0247 or 10-0247IS
UL94 Poly Black Plastic Enclosure:
Non-Incendive Cl 1 Div 2 Gr ABCD
Warranty5 year limited warranty
For sensor warranty see sensor specifications sheet.



B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    6 Items found.
CYL-10195010
(1282)

PORTAGAS  CYL-10195010

Calibration Gas Carbon Monoxide (CO) 500 ppm Balance Air, 100 Liter GAL C-10 Inlet Portagreen Aluminium Cylinder. (Made by Portagas)

Configure

$103.27
CYL-10125000
(1275)

PORTAGAS  CYL-10125000

Calibration Gas Carbon Monoxide (CO) 50 ppm Balance Air, 100 Liter GAL C-10 Inlet Portagreen Aluminium Cylinder. (Made by Portagas)

Configure

$103.27
CYL-10159000
(318)

PORTAGAS  CYL-10159000

Calibration Gas Carbon Monoxide (CO) 200 ppm Balance Air, 100 Liter GAL C-10 Inlet Portagreen Aluminium Cylinder. (Made by Portagas)

Configure

$103.27
90-01
(3243)

RC SYSTEMS  90-01

RC Systems ViewSmart 200 2-Channel Gas Detector Integral Alarm Controller with standard 2x 5A SPDT relays, with 6 x optional alarm relays, in standard CSA approved, Class I, Division 2 - NEMA 4X non-metallic enclosure. 120VAC or 24VDC power supply. Modbus interface. Optional 2 x 3-wire bridge or 2 x 4-20mA input channels board.

Configure

$2,486.18
90-50
(1642)

RC SYSTEMS  90-50

RC Systems ViewSmart 400 4-Channel Gas Detector Integral Alarm Controller with standard 2x 5A SPDT relays, with 6 x optional alarm relays, in standard CSA approved, Class I, Division 2 - NEMA 4X non-metallic enclosure. 120VAC or 24VDC power supply. Modbus interface. Optional 4 x 3-wire bridge or 4 x 4-20mA input channels board.

Configure

$3,108.42
ST-72-02
(6921)

RC SYSTEMS  ST-72-02

RC Systems ViewSmart 6400 Digital Gas Detection CONTROLLER with 16, 32, 48 or 64 channels and LCD display of 320x240 pixels. Centralize display and alarm functions. User-friendly and visually powerful. UL and CSA approved for Class I, Division 2. NEMA 4X, NEMA 4X Stainless Steel, full 19" Rack mount and NEMA 7 wall-mount options. 5 amp resistive Form C relays. Optional 4-20mA inputs/outputs and RS-485 serial port.

Configure

$10,740.31
> CARBON MONOXIDE :    40 Items found.
CM-E1
(638)

MACURCO  CM-E1

Macurco CM-E1 Carbon Monoxide gas detector for residential and commercial office environment. Flush or surface mount options, alarm and trouble relays, and 85 dB buzzer. 9-32 VDC input. NFPA 720-2009 and UL 2075 listed. CSFM Approved.



$62.25
M015-0001-000
(6333)

MPOWER  M015-0001-000

mPower UNI 321 Disposable Single Gas Detector for detection of Carbon Monoxide (CO) 1-500ppm. Up to 36 months of live. Large LCD display will show time remaining or low/high alarm levels when hit, 6 Bright Red Flashing LED, Vibrating and 90dB Audible Alarm Port. IP67, Event Logger, ATEX and UL approval for Class I Div 1.

Configure

$111.60
M001-0002-000
(5994)

MPOWER  M001-0002-000

mPower UNI MP100 Portable Single Gas Detector for detection of Carbon Monoxide (CO) 0-500ppm to 0-2000ppm. Includes large LCD display, 6 Bright Red Flashing LED, Vibrating and 90dB Audible Alarm Port. IP67, Event Logger, ATEX and UL approval for Class I Div 1.

Configure

$151.20
PPS+-CO
(6813)

PROSENSE  PPS+-CO

Prosense PPS+-CO Addressable Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with range 0-300ppm. ABS Plastic housing. Modbus RS485 RTU output. IP54. For Parking Garages and Tunnels.



$173.25
BWC2-M50
(4264)

BW  BWC2-M50

BW Clip portable gas detector 2 year maintenance free for Carbon Monoxide CO. Configurables Low and high alarm (ppm). UL approved for Class I Div 1. ATEX, CE, EC and IECEx approved.

BWC2-M50200
(4265)

BW  BWC2-M50200

BW Clip portable gas detector 2 year maintenance free for Carbon Monoxide CO. Low alarm set at 50 ppm, High alarm set 200 ppm. UL approved for Class I Div 1. ATEX, CE, EC and IECEx approved.




BWC2R-M
(5149)

BW  BWC2R-M

BW Clip Real Time portable gas detector with 2 year maintenance free for Carbon Monoxide (CO). Configurables Low and high alarm (ppm). One-button operation. Designed for harsh environments and extreme temperatures. Includes a real-time gas level display. IP66 / IP67. UL approved for Class I Div 1. ATEX, CE, EAC Ex and IECEx approved.

BWC3-M1535
(4269)

BW  BWC3-M1535

BW Clip portable gas detector 3 year maintenance free for Carbon Monoxide (CO). Configurables Low and high alarm (ppm). UL approved for Class I Div 1. ATEX, CE, EC and IECEx approved

TX1-1
(5965)

INDUSTRIAL SCIENTIFIC  TX1-1

Industrial Scientific Tango TX1 Gas Detector for Carbon Monoxide (CO) 1-1000 ppm. DualSense® Technology. 2-year run time. Includes LCD Display and 100dB audible alarm. Polycarbonate enclosure. IP66 & IP67. ATEX, CSA, IECEx, UL & INMETRO Approvals.

BWC3R-M
(5153)

BW  BWC3R-M

BW Clip Real Time portable gas detector with 3 year maintenance free for Carbon Monoxide (CO). Configurables Low and high alarm (ppm). One-button operation. Designed for harsh environments and extreme temperatures. Includes a real-time gas level display. IP66 / IP67. UL approved for Class I Div 1. ATEX, CE, EAC Ex and IECEx approved.

LC-1112-A-000-1
(2913)

INTEC  LC-1112-A-000-1

Intec Controls PolyGard LC-1112 V3 Analog Gas Transmitter for Carbon Monoxide (CO) 0-150 / 0-200 / 0-250 / 0-300 ppm. 1 4-20mA & 2-10V analog output. Wall mounted. NEMA 4X Enclosure. UL Listed and CSA Certified.

Configure

$297.00
PC3-4424
(6802)

PROSENSE  PC3-4424

Prosense PC3-4424 Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with range 0-300 ppm. Epoxy painted aluminum housing and Nickel Plated Brass sensor head. 4-20mA Analog and Modbus RS485 RTU outputs. Optional Relay Outputs. IP65, Zone 2.

Configure

$338.25
BWS_-ML-Y
(6383)

BW  BWS-ML-Y

BW Solo Serviceable Single-gas Detector for Carbon Monoxide (CO) 0-2000 ppm. Small and lightweight. One button operation, 3.6V 1.65Ah Lithium Battery. Visual, vibrating and audible alarms. Optional wireless version. IP66/68. ATEX, IECEx and CSA approvals for Class I Div 1.

P-4434
(6777)

PROSENSE  P-4434

Prosense P-4434 Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with ranges 0-300ppm to 0-1000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. ATEX/IECEx approval (Zone 1 or Zone 2). IP65, Optional IP66 Adaptor.

Configure

$420.75
CM-6
(637)

MACURCO  CM-6

MACURCO CM-6 low voltage gas detector, controller and transducer for Carbon Monoxide (CO) 0-200 ppm. Selectable 4-20 mA output, buzzer, alarm and fan relays with digital display. 12 to 24 VAC or 12 to 32 VDC power. ETL Listed to UL 61010-1. Optional LADBS approval.

Configure

$447.75
CM-12
(3415)

MACURCO  CM-12

MACURCO CM-12 line voltage Gas Detector, controller and transducer for Carbon Monoxide (CO) 0-200 ppm. Selectable 4-20mA output, buzzer, alarm and fan relays with digital display. 100 to 240 VAC 50-60Hz power. ETL Listed to UL 61010-1.

Configure

$459.00
SPC3-1112-200US
(2907)

INTEC  SPC3-1112-200US

Intec Controls PolyGard SPC3-1112 Sigle-Point Gas Detector for Carbon Monoxide (CO) 0-200 to 0-300 ppm adjustable, 2 relay outputs, 1 4-20mA & 2-10V analog output, 83 db horn. Wall mounted. NEMA 4X Enclosure. Accepts one additional analog remote device and a secondary gas, temperature or humidity sensor. UL Listed and CSA Certified.

Configure

$495.00
6302-0040
(6234)

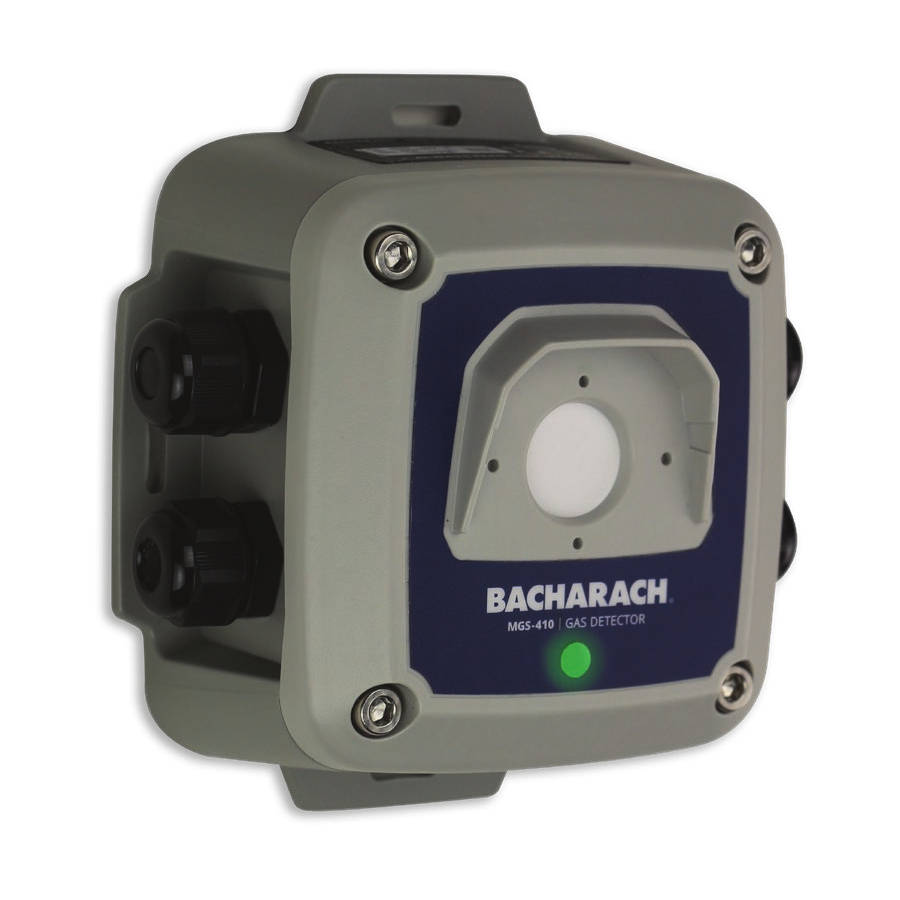

BACHARACH  6302-0040
