MULTI-POINT CONTROLLERS > HIGH DENSITY :    8 Items found.
S-DPX064
(7034)

PROSENSE  S-DPX064

Prosense S-DPX064 Gas Detector Controller, Alarm Panel for 64 x RS485 MODBUS RTU Detectors + 8 x 4-20 mA Analogue Channels, OLED Display, Alarm and Fault LED indicators for each detector and buzzer. Includes Modbus RTU RS485 output, 5 common alarm relays: Fault, Alarm-1, Alarm-2, Alarm-3 and overrange. Polycarbonate Housing, IP66, Marine Bureau Veritas (MED) Certification.

Configure

$2,017.37
DVP-1200
(6823)

MACURCO  DVP-1200

Macurco DVP-1200 Addressable Gas detector controller alarm panel for up to 192 detectors. Includes 4 Relays (Up to 12), 3 x 4-20 mA analog outputs for VFD control, 4 x 24VDC output drivers, 3 RS-485 channels and BACnet IP server output. NEMA4X enclosure. 90 – 250 VAC. Multi-Channel controller and alarm center for natural gas, methane, propane, hydrogen, carbon monoxide, ammonia, nitrogen dioxide and hydrogen sulfide. ETL Listed to UL 2017

Configure

$2,543.06
S-DPX128
(7035)

PROSENSE  S-DPX128

Prosense S-DPX128 Gas Detector Controller, Alarm Panel for 128 x RS485 MODBUS RTU Detectors + 8 x 4-20 mA Analogue Channels, OLED Display, Alarm and Fault LED indicators for each detector and buzzer. Includes Modbus RTU RS485 output, 5 common alarm relays: Fault, Alarm-1, Alarm-2, Alarm-3 and overrange. Polycarbonate Housing, IP66, Marine Bureau Veritas (MED) Certification.

Configure

$3,496.78
AA96D-DLC
(1999)

HONEYWELL  AA96D-DLC

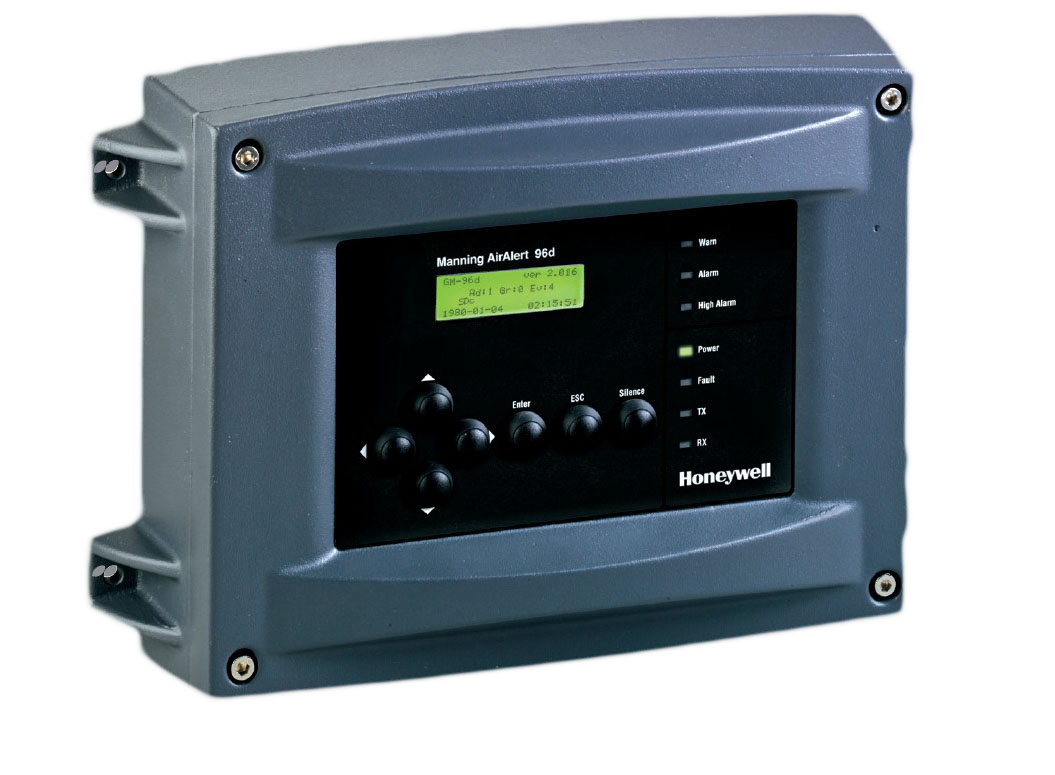

Honeywell Manning AirAlert 96d Multi-Channel gas monitoring system for continuos monitoring and control of toxic gases, combustible gases and oxygen hazards. Supports up to 96 addressable devices, any combination of Honeywell Analytics gas detectors (Manning, XCD, XNX, etc.) over Modbus and up to 126 zones. Includes 122x32 LCD display.

Configure


ST71P-1
(7026)

RC SYSTEMS  ST71P-1

RC Systems ViewSmart 1600+ 8 or 16-Channel Gas Detector Integral Alarm Controller with standard 5x 5A SPDT relays, 2 standard Master/Slave RS485 ports and Modbus TCP Client/Server port with web server included in standard CSA approved, Class I, Div 2 - NEMA 4X non-metallic enclosure. 24VDC power supply. Optional 4-20 mA inputs, 4-20 mA outputs, discrete and programmable alarm relays channels boards.

Configure

$6,217.56
HA71PM
(1987)

HONEYWELL  HA71PM

Honeywell HA71 Digital Gas Detection ALARM CONTROLLER with custom configuration options, with 8 or 16 channels and LCD display of 128x64 pixels. Has configurable control, flexible application and an user-friendly operation. UL/CSA approved, Class I, Div 2. Panel Mount, NEMA 4X or NEMA 7 enclosure with magnetic input for nonintrusive control. Includes Part No. 10-0144 four 5 amp Common Relays, Modbus input, Part No. 10-0195 sixteen 5 amp discrete relays, and Part No. 10-0172 an internal 150W Powersupply

Configure

$11,356.69
ST-72-02
(6921)

RC SYSTEMS  ST-72-02

RC Systems ViewSmart 6400 Digital Gas Detection CONTROLLER with 16, 32, 48 or 64 channels and LCD display of 320x240 pixels. Centralize display and alarm functions. UL and CSA approved for Class I, Div 2, 2 standard Master/Slave RS485 ports and Modbus TCP Client/Server port with web server included. Standard SPDT 5A relays for HORN and FAULT, plus 3 programmable alarm relays included. NEMA 4X, NEMA 4X Stainless Steel, full 19" Rack mount and NEMA 7 wall-mount options. Optional 4-20 mA inputs.

Configure

$12,179.52
72-01
(3533)

HONEYWELL  72-01

Honeywell HA-72PM Digital Gas Detection CONTROLLER with 16, 32, 48 or 64 channels and LCD display of 320x240 pixels. Centralize display and alarm functions. User-friendly and visually powerful. UL and CSA approved for Class I, Div 2. NEMA 4X, NEMA 4X Stainless Steel, full and half “19” Rackmount and NEMA 7 wall-mount options. 5 amp resistive Form C relays. Optional 4-20 mA inputs/outputs and RS-485 serial port.

Configure

$33,194.81
