MACURCO   DVP-1200

SKU# (6823)



MACURCO DVP-1200

GAS DETECTION CONTROLLERS / MULTI-POINT CONTROLLERS
HIGH DENSITY

$2,543.06  [9 Weeks]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
Macurco DVP-1200 Addressable Gas detector controller alarm panel for up to 192 detectors. Includes 4 Relays (Up to 12), 3 x 4-20 mA analog outputs for VFD control, 4 x 24VDC output drivers, 3 RS-485 channels and BACnet IP server output. NEMA4X enclosure. 90 – 250 VAC. Multi-Channel controller and alarm center for natural gas, methane, propane, hydrogen, carbon monoxide, ammonia, nitrogen dioxide and hydrogen sulfide. ETL Listed to UL 2017

DVP-1200
2,543.06

Relays
External Relay Box

  [  9 Weeks  ]

The DVP-1200 controller in conjunction with Macurco gas detectors provides automatic control to help maintain an acceptable environment in parking garages or other applications. This control panel offers an expandable system with up to 192 addressable detectors in the field. The DVP-1200 comes standard with four relays, as well as expandable onboard relay options (+2, +4). Other outputs on the DVP-1200 include three analog outputs, four 24VDC drivers, and BACnet IP. The DVP-1200 can be connected to up to two remote relay boxes with each remote relay box containing two relays. With the expandability of this panel, the DVP-1200 will fit into any gas detection application.

Features
  • Three RS-485 channels can connect up to 192 detectors (64 per channel)
  • Up to 12 relays
  • Standard with four onboard relays
  • Up to four optional onboard expansion relays (+2 or +4)
  • Can be connected to two remote relay boxes (two relays in each box)
  • (3) 4-20mA outputs for VFD control
  • (4) 24VDC outputs for alarm, trouble, remote notification
  • BACnet IP (ethernet connection)
  • Lockable NEMA4X type enclosure
  • Total of eight zones can be defined
  • Event logging
Applications
  • Parking garages
  • Car dealerships
  • Ambulance/firehouse bays
  • Warehouses
  • Manufacturing
  • Loading docks
  • Mechanical Rooms
  • Distribution centers
  • Vehicle repair facilities
  • Bus depots
DVP Options

Specifications
Size 13” x 10” x 2.75” (33 X 25.4 X 6.9 cm)
Weight 12.4 lbs (5.6 kg)
Voltage/Current Power Input: 100 – 240 VAC
1 Amp, 50/60 Hz, single phase
Operating Temperature 32°F to 104°F (0°C to 40°C)
Ambient Humidity 0% to 95% RH non-condensing
Display LCD display: 320 x 240 Pixels Graphic with backlight
Mounting Mounting holes in each corner
Relays 4 SPDT, 120/240 VAC, 10 A Max (resistive)
Optional additional relay boards (+2 or +4)
Optional remote relays (up to 4)
Settings External keypad for user selection of the transducer/alarm display and setting the configuration
Status Indicators Power / trouble, hush, warning / alarm, and relay
Alarms Internal buzzer, 90 dBA at 1ft
Enclosure NEMA4X rated
Certifications ETL Listed to UL 2017
Warranty Two year limited warranty
Export Info
Harmonized Tariff Code (HTC)8531100045

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    9 Items found.
HS-SYNC
(6048)

MACURCO  HS-SYNC

Macurco HS-SYNC Synchronization Module for use with multiple Macurco Horn & Strobe units.



$123.20
HS-B
(5735)

MACURCO  HS-B

Macurco HS Horn and Strobe for Macurco DVP-120 & DVP-120M control panels and Macurco 6 & 12 Series detectors. High power cool white LED. 15, 30, 75 or 110cd strobe candela. Continuous or Temporal 4 audio tones. 24VDC.

Configure

$177.87
GD-6
(1234)

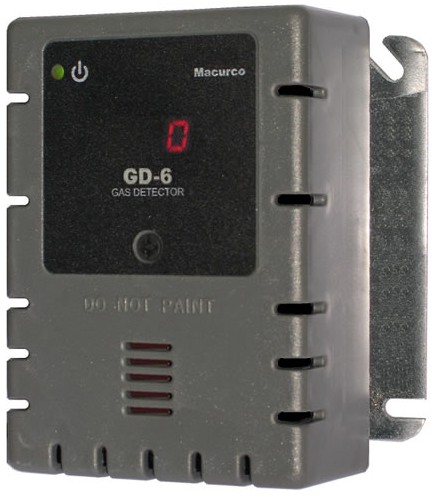

MACURCO  GD-6
