SPECTREX   QTU-C-111

SKU# (6901)



SPECTREX QTU-C-111

ACCESSORIES & PARTS / OPEN PATH
TOXIC

$14,287.57  [12 Weeks]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
SPECTREX SafEye Quasar 950/960 open path replacement transmitter with ultraviolet technology to detect toxic Hydrogen Sulfide (H2S) and Ammonia (NH3) at very low concentrations. Long range and high speed response. 24 Vdc. 0-20 mA, HART and RS-485 Modbus outputs. Stainless steel housing. IP66 and IP68. NEMA 250 6P. FM, ATEX, IECEx, CSA and SIL2 approvals.

QTU-C-111
14,287.57

Certification
Model
Entry Size

  [  12 Weeks  ]
30 Variants of base SKU

The SafEye Quasar 950 is part of the innovative SafEye Quasar open path gas detector series. The detector provides ultraviolet technology continuous monitoring for toxic hydrogen sulfide (H2S) gas at very low concentrations, up to 95 percentobscuration, featuring advanced wide area coverage with long range detection at up to 200 ft. (60 m) and high speed response in under 10 seconds. The SafEye Quasar 950 is solar blind and immune to industrial environments, ensuring reliable and accurate protection to keep a SafEye on your safety.

Features and benefits
  • Detects toxic hydrogen sulfide (H2S) at up to 200 ft. (60 m)
  • Accurate and reliable high-speed response in under 10 seconds
  • Uses ultraviolet technology
  • High false alarm immunity
  • Solar blind and immune to industrial environments
  • Built-in event recorder; real time record of the last 100 events
  • Strengthened reliability and durability with a massive three-year warranty
  • Easy installation and maintenance
  • Heated window for operation in harsh weather conditions (snow, ice, or condensation)
  • Detection of a cloud of gas at very low concentrations, up to 95 percent obscuration
  • User programmable via HART ® or RS-485 Modbus ® ; compatible with modern user interface for ease of use
  • Certified performance/Hazardous Area approved (FM, ATEX, IECEx, CSA, and more) for location in Zone 1 areas and 3rd party performance approved (FM, DNV)
  • Approved to Safety Integrity Level 2 (SIL2 - TÜV)
  • High reliability-MTBF-minimum 100,000 hours
Applications
  • Offshore platforms and FPSOs
  • Petrochemical plants
  • Chemical
  • Gas filling and distribution terminals
  • Gas transport and pipelines
  • Perimeter monitoring

The SafEye Quasar 960 is part of he innovative SafEye Quasar open path gas detector series. The detector provides ultraviolet technology continuous monitoring for toxic ammonia (NH3) gas at very low concentrations, up to 95 percent obscuration, featuring advanced wide area coverage with long range detection up to 200 ft. (60 m) and high speed response in under 10 seconds.

The SafEye Quasar 960 is solar blind and immune to industrial environments, ensuring reliable and accurate protection to keep a SafEye on your safety.

Features and benefits
  • Detects toxic ammonia (NH3) at up to 200 ft. (60 m)
  • Accurate and reliable high-speed response in under 10 seconds
  • Uses ultraviolet technology
  • High false alarm immunity
  • Solar blind and immune to industrial environments
  • Built-in event recorder; real time record of the last 100 events
  • Strengthened reliability and durability with a massive three-year warranty
  • Easy installation and maintenance
  • Heated window for operation in harsh weather conditions (snow, ice, or condensation)
  • Detection of a cloud of gas at very low concentrations, up to 95 percent obscuration
  • User programmable via HART ® or RS-485 Modbus ® ; compatible with modern user interface for ease of use
  • Certified performance/Hazardous Area approved (ATEX, IECEx, CSA, and more) for location in Zone 1 areas
  • Approved to Safety Integrity Level 2 (SIL2 - TÜV)
  • High reliability-MTBF-minimum 100,000 hours
Applications
  • Agriculture
  • Food and beverage
  • Chemical
  • Waste management
  • Water treatment
  • Pharmaceutical

General specifications
Detected gasHydrogen sulfide (H2S)
Ammonia (NH3)
Response time< 3 seconds (T90 < 10 seconds)
Immunity to false alarmsNot influenced by solar radiation, hydrocarbon flames, and other external infrared radiation sources
Sensitivity range0-500 ppm.m
Displacement/misalignment tolerance±1 degree
DriftLong term ± five percent of full scale
Temperature range-67 to +149 °F (-55 to +65 °C)
HumidityUp to 95 percent non-condensing (withstands up to 100 percent relative humidity for short periods)
Heated opticsTo eliminate condensation and icing on the window
WarrantySafety system: three years
Electrical specifications
Power supply24 Vdc nominal (18-32 Vdc)
Power consumption (peak includes heated optics)Detector: 250 mA (300 mA peak)
Source: 250 mA (300 mA peak)
Warm-up time60 seconds for transmitter and receiver
Electrical connection (specify)Two ¾-in. - 14 national pipe thread (NPT) conduits or 2 x M25 x 1.5 mm ISO
Electrical input protectionAccording to MIL-STD-1275B
Electromagnetic compatibilityElectromagnetic interference/radio frequency interference (EMI/RFI) protected to EN50270
Outputs - interfaces
0-20 mA current outputSink (source option) configuration: maximum load of 500 ohm at 18-32 Vdc
Gas reading: 0-20 mA
Normal, zero reading: 4 mA
Maintenance call: 3 mA
Misalignment: 2.5 mA
Obscuration/beam block: 2 mA
Zero calibration mode: 1 mA
Fault: 0 mA
RS-485 interface - Modbus ® compatibleRS-485 Modbus compatible communication link that can be used in computer controlled installations
HART ® protocolOptional HART communications on the 0-20 mA analog current (FSK) - used for maintenance and asset management
Visual status indicatorThree color light emitting diode (LED)
Green: power on
Yellow: fault
Red: alarm
Outputs - interfaces
EnclosureThe source and detector housings are stainless steel 316L with electro polish finish. The circuit boards are conformal coated and protected from mechanical vibrations. The tilt mount is also stainless steel 316L.
DimensionsDetector/source: 10.5 x 5.1 x 5.1 in. (267 x 130 x 130 mm)
Tilt mount: 4.7 x 4.7 x 5.5 in. (120 x 120 x 158 mm)
WeightDetector/source: 11 lb. (5 kg)
Tilt mount: 4.2 lb. (2 kg)
Water and dust tightIP66 and IP68 per EN60529, NEMA 250 6P
Environmental standardsMeets MIL-STD-810C for humidity, salt and fog, vibration, mechanical shock, high temperature, and low temperature
ReliabilitySIL2 per IEC61508 (TUV)
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)9027102000

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    12 Items found.
888263
(3489)

SPECTREX  888263

Sunshine Protector (Stainless Steel) for SPECTREX SafEye Quasar 900



$344.42
888820
(7102)

SPECTREX  888820

SPECTREX Universal connection harness for Modbus/HART communication with Quasar 900 device via RS485 terminals in safe area. Replaces 888815 and 888816



$409.64
(3490)

SPECTREX  888270

Tilt mount for SPECTREX SafEye Quasar 900



$414.99
(3488)

SPECTREX  799225

Pole mount (U-bolt) 5 inch for SPECTREX SafEye Quasar 900



$582.36
(5031)

SPECTREX  888140

Pole mount (U-bolt) - 2-3" for SPECTREX SafEye Quasar 900



$624.57
888257
(3486)

SPECTREX  888257

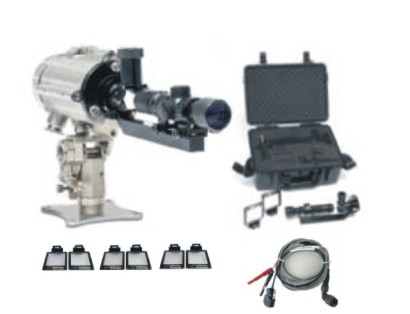

Extended Commissioning Kit for Spectrex SafEye Quasar 900 Methane/Propane/Ethylene. Includes alignment telescope, and 6 function check filters Methane (888260-1, 888260-2), Propane (888260-3, 888260-4), and Ethylene (888260-5, 888260-6), for testing of warning and alarm levels, respectively . Also includes universal connection harness for Modbus/HART communication with Quasar 900 device via RS485 terminals in safe area (888820). Replaces 888247-1, 888247-2, 888247-3.
