Bw Bwc3r-m | Carbon Monoxide | Gas Detectors (portable) | Gasdetectorsusa
Gas Leak and Flame Detectors, Analyzers, Alarm Devices and Calibration Gas

BW   BWC3R-M

SKU# (5153)



BW BWC3R-M

DETECTORS / GAS DETECTORS (PORTABLE)
CARBON MONOXIDE

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
BW Clip Real Time portable gas detector with 3 year maintenance free for Carbon Monoxide (CO). Configurables Low and high alarm (ppm). One-button operation. Designed for harsh environments and extreme temperatures. Includes a real-time gas level display. IP66 / IP67. UL approved for Class I Div 1. ATEX, CE, EAC Ex and IECEx approved.

PORTABLE   DISPLAY   UL   ATEX   IECEX   DIV 1

BWC3R-M
Please Email us your request for quote

Range

  [  2 Weeks  ]
The most user-friendly, reliable and cost-effective way to ensure safety, compliance and productivity.

The BW Clip single-gas detector is your everyday companion for hazardous environments. It operates up to three years maintenance-free: Just turn on the device and it runs continuously — no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime.

Plus, with the two-year BW Clip for H2S or CO, you can put the device in a hibernation case when you’re not using it for a week or more — and extend its life by that period of time.

Compatible with both the MicroDock II and the IntelliDoX instrument management systems, the BW Clip is engineered to the highest standards of quality and reliability, keeping you safe and compliant.

Use our unique advanced technology for safety, compliance and productivity.
  • Surecell: unique dual reservoir sensor design dramatically improves instrument performance, response time, and longevity compared to traditional electrochemical sensors and consistently delivers reliable instrument performance under the harshest environmental conditions
  • Reflex Technology : advanced automated self-test function routinely checks the operating condition of the sensor to increase safety, up-time, and overall worker confidence
  • IntelliDoX: instrument management system
    • The quickest bump test in the industry
    • Configuration of alarm set points and more
    • Performing different tests for up to five BW Clip detectors at once — for maximum productivity
    • Easy and accurate record-keeping
BW Clip Standard Features:
  • Maintenance-free: no sensor or battery changes necessary
  • Compact, lightweight design with one-button operation
  • Designed for a range of harsh environments and extreme temperatures
  • Hibernation mode with case accessory or IntelliDoX
  • Automated self-test of battery, sensor and electronics
  • Wide-angle flash, which alerts simultaneously with audible and vibrating alarm
  • Automatic logging of the 35 most recent gas events and bump test results
  • Compatible with MicroDock II and Fleet Manager II software
  • Affordable, with low cost of ownership
Configureable Options:
  • Configuration of high and low alarm set points before the device is activated
  • Adjustment of alarm set points and other parameters as needed throughout the lifespan
  • Option to enable the noncompliance indicator, which flashes red when a bump test is due or a gas event occurs
  • Option to display gas reading during alarm
  • User settable bump test reminder
  • Option to display the Real Time Clock

BW Clip Specifications
Size 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm
Weight 3.2 oz. / 92 g
Temperature H2S: -40 to +122°F / -40 to +50°C
CO: -22 to +122°F / -30 to +50°C
O2: -4 to +122°F / -20 to +50°C
SO2: -22 to +122°F / -30 to +50°C
Humidity 5% - 95% RH (non-condensing)
Alarms Visual, vibrating, audible (95 dB) • Low, High
Tests Activated detectors automatically perform one internal diagnostic test every 24 hours.
Typical battery life Two years (H2S, CO, O2 or SO2) or three years (H2S or CO)
Event logging 35 most recent events
Ingress Protection IP 66/67
Certifications and approvals UL: Class I, Div. 1, Gr. A, B, C, D
Class I, Zone 0 , Gr. IIC
ATEX: CE Ex 0539 II 1G
Ex ia IIC T4 Ga IP66/67
DEMKO 14 ATEX 1356
IECEx: Ex ia IIC T4 Ga IP66/67
IECEx UL 14.0063
CE: European Conformit
EAC Ex: CU TR Ex
Warranty Two or three years from activation (given normal operation), plus one year shelf life (6 months for O2). Up to three years for two-year H2S and CO detectors when used with the hibernation feature, limited to 24 months of detector operation.

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    1 Items found.
DX-CLIP
(5160)

BW  DX-CLIP

BW IntelliDoX automated instrument management system for BW Clip BWC2, BWC3 and Solo. 12V. Provides bump testing, calibration, configuration, and record-keeping support. Infrared communication. Ethernet and USB port. Includes 2GB internal data storage.

Configure


> CARBON MONOXIDE :    37 Items found.
CM-E1
(638)

MACURCO  CM-E1

Macurco CM-E1 Carbon Monoxide gas detector for residential and commercial office environment. Flush or surface mount options, alarm and trouble relays, and 85 dB buzzer. 9-32 VDC input. NFPA 720-2009 and UL 2075 listed. CSFM Approved.



$67.83
C2-M
(4265)

BW  C2-M

BW Clip portable gas detector 2 year maintenance free for Carbon Monoxide CO. Low alarm set between 25ppm and 50 ppm, High alarm set between 50ppm and 200 ppm. UL approved for Class I Div 1. ATEX, CE, EC and IECEx approved.

Configure

$107.97
70-2900-0500-1
(7302)

AIMSAFETY  70-2900-0500-1

AimSafety PM100 Portable Gas Detector (Two Year Disposable) for Carbon Monoxide (CO) 0-500 ppm. LCD display. Audible, visual and vibrating alarms. IP67. UL & CSA Class I Div 1, Div 2, ATEX, IECEx, INMETRO.



$120.00
M015-0001-000
(6333)

MPOWER  M015-0001-000

mPower UNI 321 Disposable Single Gas Detector for detection of Carbon Monoxide (CO) 1-500ppm. Optional 24 or 36 months of life. Large LCD display will show time remaining or low/high alarm levels when hit, 6 Bright Red Flashing LED, Vibrating and 90dB Audible Alarm Port. IP67, Event Logger, ATEX and UL approval for Class I Div 1.

Configure

$122.98
PPS+-CO
(6813)

PROSENSE  PPS+-CO

Prosense PPS+-CO Addressable Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with range 0-300ppm, 0-500ppm or 0-1000ppm. ABS Plastic housing. Modbus RS485 RTU output. IP54. For Parking Garages and Tunnels. PPS+ detectors cannot be used either stand alone or integrated to 3rd party systems, work with PPS Manager PPS-KP alarm panel only.

Configure

$134.49
M001-0023-000
(5994)

MPOWER  M001-0023-000

mPower UNI MP100 Portable Single Gas Detector for detection of Carbon Monoxide (CO) 0-500ppm to 0-2000ppm. Includes large LCD display, 6 Bright Red Flashing LED, Vibrating and 90dB Audible Alarm Port. IP67, Event Logger, ATEX and UL approval for Class I Div 1.

Configure

$153.08
TX1-1
(5965)

INDUSTRIAL SCIENTIFIC  TX1-1

Industrial Scientific Tango TX1 Gas Detector for Carbon Monoxide (CO) 1-1000 ppm. DualSense Technology. 2-year run time. Includes LCD Display and 100dB audible alarm. Polycarbonate enclosure. IP66 & IP67. ATEX, CSA, IECEx, UL & INMETRO Approvals.

Configure


BWC2R-M
(5149)

BW  BWC2R-M

BW Clip Real Time portable gas detector with 2 year maintenance free for Carbon Monoxide (CO). Configurables Low and high alarm (ppm). One-button operation. Designed for harsh environments and extreme temperatures. Includes a real-time gas level display. IP66 / IP67. UL approved for Class I Div 1. ATEX, CE, EAC Ex and IECEx approved.

Configure


CX-6-CO
(7310)

MACURCO  CX-6-CO

Macurco CX-6-CO low voltage Gas Detector, Controller and Transducer for Carbon Monoxide (CO) 0-200 ppm. Selectable 4-20 mA output, buzzer, alarm and fan relays with digital display. 12 to 24 VAC or 12 to 32 VDC. power ETL Listed to UL 61010-1, UL 2075 LADBS approval.

Configure

$362.25
SV-4404
(7376)

PROSENSE  SV-4404

Prosense SafeVader SV-4404 Fixed Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with range 0-300 ppm to 0-5000 ppm. 4-20 mA Analog, Modbus RS485 RTU and relay outputs (Alarm1, Alarm2, Fault). 12 to 28VDC. ABS Plastic enclosure. IP54.

Configure

$366.92
CX-12-CO
(7311)

MACURCO  CX-12-CO

Macurco CX-12-CO low voltage Gas Detector, Controller and Transducer for Carbon Monoxide (CO) 0-200 ppm. Selectable 4-20 mA output, buzzer, alarm and fan relays with digital display. 12 to 24 VAC or 12 to 32 VDC. power ETL Listed to UL 61010-1, UL 2075 LADBS approval.

Configure

$400.20
PC3-4424
(6802)

PROSENSE  PC3-4424

Prosense PC3-4424 Gas Detector with Electrochemical sensor for Carbon Monoxide (CO) with range 0-300 ppm. Epoxy painted aluminum housing and Nickel Plated Brass sensor head. 4-20 mA Analog and Modbus RS485 RTU outputs. Optional Relay Outputs. IP65, Zone 2.

Configure

$421.40
BWS1-ML-Y
(6383)

BW  BWS1-ML-Y

BW Solo Serviceable Single-gas Detector for Carbon Monoxide (CO) 0-2000 ppm. Small and lightweight. One button operation, 3.6V 1.65Ah Lithium Battery. Visual, vibrating and audible alarms. Optional wireless version. IP66/68. ATEX, IECEx and CSA approvals for Class I Div 1.

Configure


CM-6
(637)

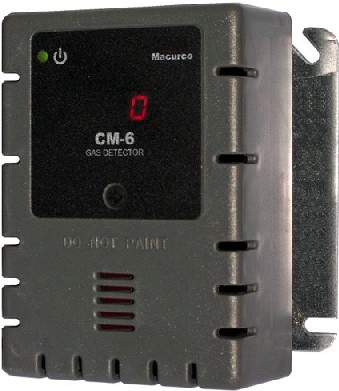

MACURCO  CM-6
