Kwiksense Ks1000u2-ssa0015a | Ozone | Gas Detectors (explosion-proof) | Gasdetectorsusa
Gas Leak and Flame Detectors, Analyzers, Alarm Devices and Calibration Gas

KWIKSENSE   KS1000U2-SSA0015A

SKU# (7628)



KWIKSENSE KS1000U2-SSA0015A

DETECTORS / GAS DETECTORS (EXPLOSION-PROOF)
OZONE

$1,730.60  [4 Weeks]
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
Uniphos KwikSense Pro Smart Gas Detector with Electrochemical Sensor for Ozone (O3) 0-1 ppm. Includes 4-20 mA, MODBUS RS-485 and HART outputs, 3 Alarm relays, OLED Display, Aluminum Enclosure (optional Stainless Steel). ATEX/IECEx/SIL2 Approved. IP66.

DISPLAY   4-20 mA   RELAYS   ATEX   IECEX   SIL2   HART   MODBUS

KS1000U2-SSA0015A
1,730.60

Enclosure
Cable Entry

  [  4 Weeks  ]
4 Variants of base SKU
Description

The KwikSense Pro smart digital gas transmitter is a field mountable gas detector suitable for the detection and continuous monitoring of hazardous gases in industrial plants.

A truly universal transmitter, it is compatible with any one of our more than 100 smart gas sensors, which include oxygen, toxic gases, combustible gases and volatile organic compounds (VOCs).

  • Digital Communication on MODBUS over RS-485 / HART over 4-20mA
  • Industry standard 4-20mA analog output
  • 3 potential free relay contacts
  • Pre-Calibrated Smart Sensor capable of swapping between any sensor technology
  • Sensor Technologies Available
    • Electrochemical
    • Pellistor
    • Solid State
    • NDIR
    • PID
    • MPS
  • Non-intrusive Calibration
  • Bright OLED display
KwikSense Lite Digital Gas Transmitter

The Uniphos KwikSense Lite Transmitter offers users a low-cost solution to their gas monitoring needs.

The KwikSense Lite comes with a single gas swappable sensor facility and a single potential free relay contact for alarm.

MED certification is applicable for Oxygen and Flammable gases.

Specifications
  • Swappable Smart Sensor for single gas
  • Sensor Technologies available: EC, PEL, NDIR, PID & SS
  • Industrial standard 4-20 mA output
  • Tri-color LEDs indicate alarm
KwikSense RD Remote Display

The Uniphos KwikSense RD enables users to duplicate the transmitter display at a second remote location.

This is particularly useful if the gas transmitter is located in a location where its display is difficult to view or in case a second display is required.

It can act as a controller or as a bridge between the detector and controller.

Specifications
  • Configuration via non-intrusive magnetic wand
  • It accepts industry standard 4-20mA input available from detector and provides RS-485 MODBUS and 4-20mA output to connect with the controller
  • Tri-color LEDs have been provided to signal the alarm condition
Certifications: KwikSense Pro
  • ATEX certified by SGS BASEEFA
    II 2 G Ex db IIC T6 Gb (Tamb = -40°C to +55°C)
    Ex db IIC T5 Gb (Tamb = -40°C to +70°C)
    Ex db IIC T4 Gb (Tamb = -40°C to +85°C)
    - Not applicable with remote sensor option
  • IECEx Certified Certificate No: IECEx BAS 14.0148X
    Ex db IIC T6 Gb (Tamb = -40°C to +55°C)
    Ex db IIC T5 Gb (Tamb = -40°C to +70°C)
    Ex db IIC T4 Gb (Tamb = -40°C to +85°C)
  • SIL-2 Certified
  • HART Registered

General Specifications
Sensor Technology: EC, PEL, NDIR, PID, SS, MPS
Operating Voltage: 18V to 30 VDC
System Type: ĩController based instrument (non intrusive calibration)
Display: 8 x 2 OLED Display
Sampling Type: Diffusion
Sensor: Swappable Smart Sensor
LEDs: Tri-color LED
Alarms: Two user settable alarms
Output: 4-20mA, MODBUS over RS-485, HART over 4-20 mA
Relays: 3 potential-free contacts
Load Resistance: 600 Ω (max)
Power Consumption: < 3 W
Enclosure: Flameproof Cast Aluminium alloy
Ingress Protection: IP 66
Dimensions (mm): Approx. 155 x 145 x 100 (WO cable gland & stopper)
Wire Configuration: 3/4 wires
Interface: Calibration & configuration via non-intrusive magnetic wand
Operating Temperature: -40°C to +65°C (depend on sensor)
Operating Pressure: Ambient + 10%
Operating Humidity: 0-95% RH (Extended exposure to extreme humid conditions may degrade sensor performance)
Cable Entries: ―” NPT (M20) - 2 entries / ū” NPT (M25) - 2 entries
Certifications: ATEX, IECEx, SIL2, CE, HART
Weight: 2.3 kg (Approx.)
Export Info
Made inIndia
Harmonized Tariff Code (HTC)9027102000

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping & Handling

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    6 Items found.
(7605)

KWIKSENSE  ER003605

Kwiksense Splash Guard/Rain Shield for KwikSense Pro



$101.01
ER004028
(7606)

KWIKSENSE  ER004028

Kwiksense Gas Collection Cone for KwikSense Pro



$143.78
ER004752
(7609)

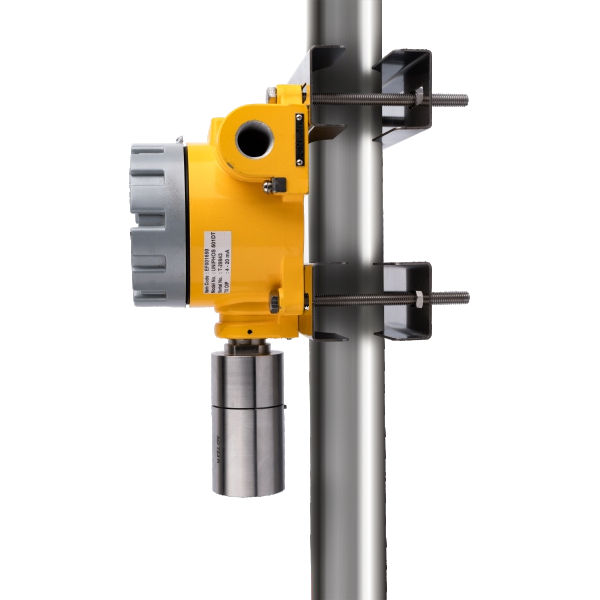

KWIKSENSE  ER004752

Kwiksense Pipe Mounting Kits for KwikSense Pro



$185.64
(7608)

KWIKSENSE  ER001008

Kwiksense Canopy (Metallic or FRP) for KwikSense Pro

Configure

$185.64
EF001557
(7610)

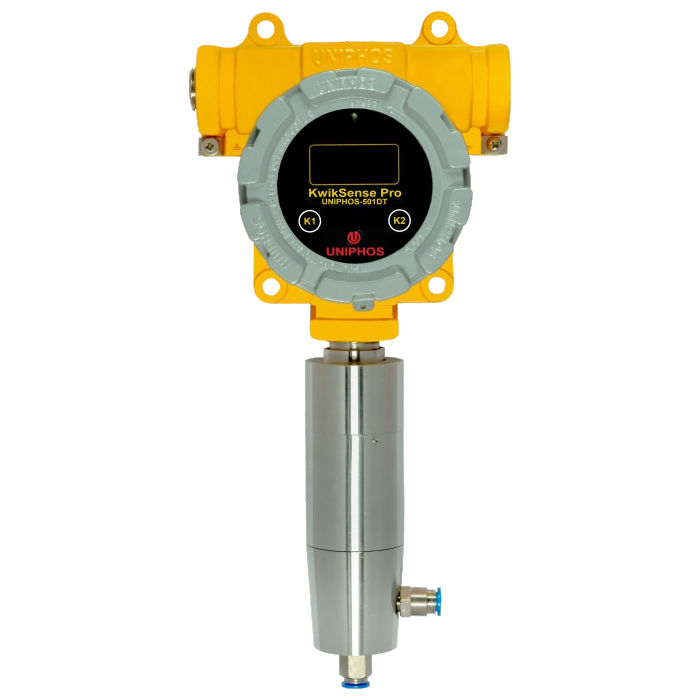

KWIKSENSE  EF001557

Kwiksense Flow Through Adapter (Flow Cell) for KwikSense Pro



$242.97
ER004091
(7607)

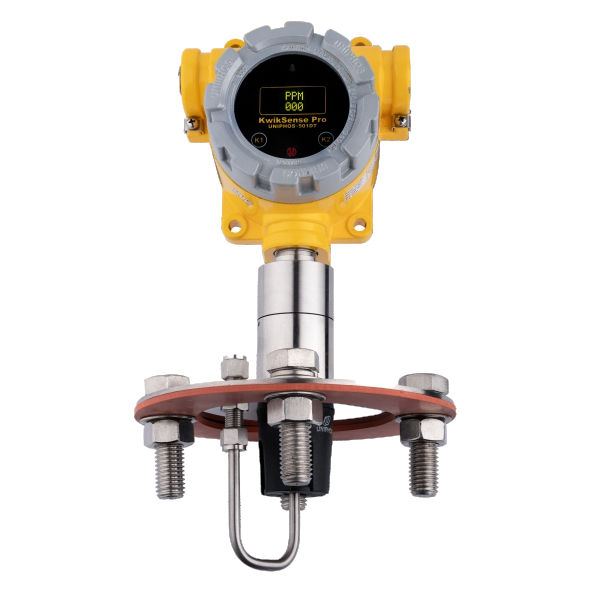

KWIKSENSE  ER004091
