E2S   BEXBGL2DPAC115AB1A1R/A

SKU# (3655)



E2S BEXBGL2DPAC115AB1A1R/A

ALARM SIGNAL DEVICES / ATEX
BEACONS

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
E2S BExBGL2 Explosion and Flame Proof LED Status Light & Beacon suitable for Zone 1, 2, 21 & 22. 160cd. LM6 aluminium enclosure. Glass lens and Stainless Steel guard. IP66/67. IECEx, ATEX, Ex EAC and INMETRO approvals.

ATEX   IECEX   ZONE 1

BEXBGL2DPAC115AB1A1R/A
Please Email us your request for quote

Voltage
Cable Entries
Stopping plug/adaptor material
Bracket
Color
Metric Adaptor

  [  2 Weeks  ]
251 Variants of base SKU / 30 Shown below

The flameproof BExBGL2 L.E.D., 160 candela multi-function beacon is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards. SIL1 compliant.

The BExBGL2 explo sio n pro o f Ex d LED status light & beaco n utilises an array o f high po wer Cree® LED’s, o rientated to o ptimise visibility in any directio n.

The beaco n can be co nfigured as a steady beaco n fo r status indicato r use, with a light o utput o f up to 87 candela. Alternatively o ne o f the five flashing mo des, with a light o utput o f up to 160 candela, may be used fo r warning applicatio ns. DC vo ltage versio ns feature three remo tely selectable stages enabling multiple warnings to be signaled fro m o ne device. The UV stable co lo ur filter enhances the light o utput and is field replaceable.

Features:
  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Ingress protection IP66/67
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady On modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual cable entries
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.
Approvals:

  • IECEx KEM 10.0002X

    • IEC 60079-0 : 2011
    IEC 60079-1 : 2007-4
    IEC 60079-31 : 2013
  • ATEX KEMA 00ATEX2006X

    • EN 60079-0 : 2012 + A11
    EN 60079-1 : 2007
    EN 60079-31 : 2014
  • SIL 1 compliant to IEC 61508 (2010)
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109
Coding
  • II 2G Ex d IIC T6 Gb Ta. -50°C to +60°C
  • II 2G Ex d IIC T5 Gb Ta. -50°C to +70°C
  • II 2D Ex tb IIIC T60°C Db Ta. -50°C to +40°C
  • II 2D Ex tb IIIC T75°C Db Ta. -50°C to +55°C
  • II 2D Ex tb IIIC T90°C Db Ta. -50°C to +70°C

Specification
Source: Array of 4 x High Power Cree® LED’s
Modes: 1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady
Eff. Intensity cd: 87 cd – High Power Steady
160 cd – 1Hz flash
Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
Voltages DC: 24V dc (18-54V dc)
Voltages AC: 115vac; 230vac
Ingress protection: IP66/67
Enclosure matl: Marine grade copper free LM6 Aluminium
Enclosure finish: Chromate & powder coated finish – anti-corrosion.
Colour: RAL3000 Red (others available on request)
Cable entries: Dual M20 ISO (one stopping plug inc)
Terminals: 0.5 – 2.5mm2 (20-14 AWG)
Enclosure volume: <2 litres
Linemonitoring: Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
Grounding stud: M5
Temperature range: -50° to +70°C (-58°F to +158°F)
Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
Weight: DC:2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs
*All candela data is representative of performance with clear lens at optimum voltage.
Export Info
Made inUnited Kingdom
Harmonized Tariff Code (HTC)85311095

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer/Electronic Payment and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> BEACONS :    110 Items found.
XB4_BB8DNNNN06AAANRN1R
(1568)

MEDC  XB4BB8DNNNN06AAANRN1R

MEDC XB4 Xenon beacon (21 Joules), Zone 1 and Zone 2 use, Exd(e), Weatherproof, IP66 and IP67, designed for use in potentially explosive atmospheres and harsh environmental conditions. -55C to +70C. Suitable for use offshore or onshore. ATEX Certified. IECEx, CUTR and Inmetro versions also available.

Configure

$1,796.70
3024XLF-A
(7215)

TOMAR  3024XLF-A

Tomar Electronics Model 3000 LED explosion proof compact warning light. Steady-burning, single or double flash mode. 10-36 VDC and 85-265 VAC versions. NEMA 4X copper-free aluminum housing. Pendant, Flange or Wall mounting. UL listed for Class I, Div 1, Groups C & D; Class II, Div 1, Groups E, F & G; and Class III.

Configure

$1,880.21
7024BEP-FM-A
(7217)

TOMAR  7024BEP-FM-A

Tomar Electronics 7024BEP Super Explosion Proof Warning Light with Xenon strobe lamp. NEMA 4X copper-free aluminum housing. 24 VDC. 60 FPM. Class I, Div. 1 & 2, Groups C & D, Class II, Div. 1 & 2, Groups E, F, G, and Class III. UL listed.

Configure

$1,962.38
7120BEP-FM-A
(7218)

TOMAR  7120BEP-FM-A

Tomar Electronics 7120BEP Super Explosion Proof Warning Light with Xenon strobe lamp. NEMA 4X copper-free aluminum housing. 120 VAC. 80 FPM. Class I, Div. 1 & 2, Groups C & D, Class II, Div. 1 & 2, Groups E, F, G, and Class III, Div. 1 & 2, Groups E, F, G, and Class III. UL listed.

Configure

$1,962.38
7024XLF-A
(7216)

TOMAR  7024XLF-A

Tomar Electronics Model 7000 LED explosion proof warning light. Steady-burning, single or double flash mode. 10-36 VDC and 85-265 VAC versions. NEMA 4X copper-free aluminum housing. Pendant, Flange or Wall mounting. UL listed for Class I, Div 1, Groups C & D; Class II, Div 1, Groups E, F & G; and Class III.

Configure

$1,975.90
STEXB2LD2DC024AS2A1R/A
(6446)

E2S  STEXB2LD2DC024AS2A1R/A

E2S STExB2LD2 Explosion Proof LED Multi-function Beacon with 5 flash rates. IP66 corrosion proof 316L stainless steel enclosure with guard. Up to 338 cd. 4 x M20 ISO entries. Suitable for For All Zone 1, 2, 21 & 22. IECEx and ATEX Approved.

Configure


STEXB2X10DC024CB2A1R/A
(5142)

E2S  STEXB2X10DC024CB2A1R/A

E2S STExB2X10 10 Joule Xenon Strobe Beacon with 1Hz, 1.5Hz and double flash rates. IP66 corrosion proof 316L stainless steel enclosure with guard. 4 x M20 ISO entries. Suitable for For All Zone 1, 2, 21 & 22. IECEx and ATEX Approved.

Configure

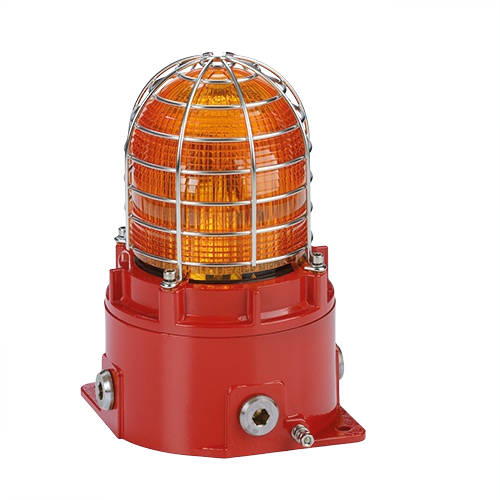

STEXB2X15DC024CB2A1R/A
(6448)

E2S  STEXB2X15DC024CB2A1R/A

E2S STExB2X15 15 Joule Xenon Strobe Beacon with 1Hz, 1.5Hz and double flash rates. IP66 corrosion proof 316L stainless steel enclosure with guard. 4 x M20 ISO entries. Suitable for For All Zone 1, 2, 21 & 22. IECEx and ATEX Approved.

Configure

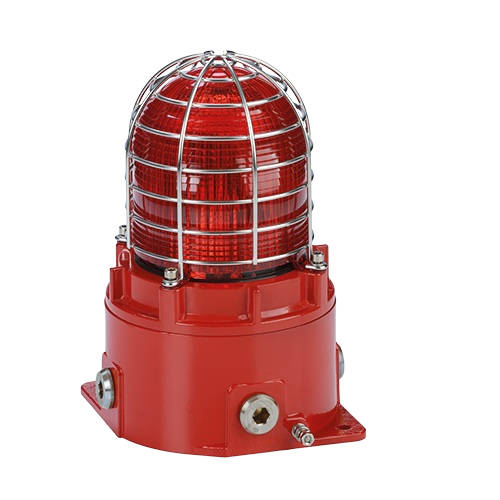

STEXB2RT1DC012AS2A1R/A
(6447)

E2S  STEXB2RT1DC012AS2A1R/A

E2S STExB2RT1 Explosion Proof Rotating Halogen Beacon. IP66 corrosion proof 316L stainless steel enclosure with guard. Up to 633 cd. 4 x M20 ISO entries. Suitable for For All Zone 1, 2, 21 & 22. IECEx and ATEX Approved.

Configure

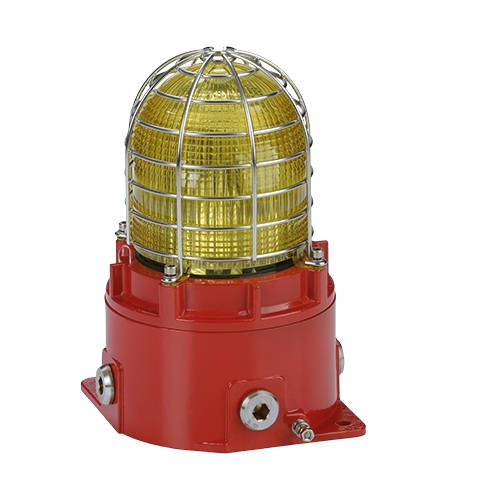

STEXB2X21DC024CB2A1R/A
(6449)

E2S  STEXB2X21DC024CB2A1R/A

E2S STExB2X21 21 Joule Xenon Strobe Beacon with 1Hz, 1.5Hz and double flash rates. IP66 corrosion proof 316L stainless steel enclosure with guard. 4 x M20 ISO entries. Suitable for For All Zone 1, 2, 21 & 22. IECEx and ATEX Approved.

Configure
