BACHARACH  6600-8041

BACHARACH 6600-8041 (1)
  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE

Bacharach MGS-550 Industrial Refrigerant Gas Detector with semiconductor sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-1000ppm or 0-5000ppm. 3 x relays, analog output, RS485 MODBUS output and 5-digit display. Remote sensor capabilities. IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R32, R134A, R404A, R407A, R407C, R407F, R410A, R422A, R422D, R427A, R507, HFO1234YF, HFO1234ZE, R290, R600, R448A, R449A, R452A, R513A.

Part# with Options:        6600-8041
Price with Options:        711.90

Options:

Gas Range
(1) Gas Range for Bacharach MGS-550 (RF 0-1000ppm)
Remote Sensor
(2) Remote Sensor for Bacharach MGS-550 with 5 meter remote cable
2nd Sensor
(3) 2nd Sensor for Bacharach MGS-550
2nd Sensor
(4) 2nd Sensor for Bacharach MGS-550 2
Remote 2nd Sensor
(5) Remote Second Sensor for Bacharach MGS-550 with 5 meter remote cable

Availability 3 Weeks  ]


FEATURES
  • One or two sensor capability
  • Remote sensor capabilities
  • Analog and digital interface
  • On-board relays
  • Magnetic wand
  • Status indicator and LED display
  • Optional MGS-408 Controller
BENEFITS
  • Detects two gases and/or in two locations with one instrument
  • Flexible placement in hard to reach areas
  • Ease of integration with multiple control devices
  • Connects to local alarm devices for saving costs on installation
  • Non-intrusive configuration and calibration
  • Provides at-a-glance status overview and comprehensive direct user interface
  • Create an independent, centralised alarm system with up to 6 gas detectors
DESCRIPTION

Bacharachs MGS-550 leak detector combines electrochemical, semiconductor, catalytic bead and infrared sensors into one platform to support leak detection for the new low GWP (Global Warming Potential) refrigerant blends as well as natural refrigerants to enable gas leak detection in the often harsh environments of industrial refrigeration.

The MGS-550 can easily be integrated into any building management system (BMS). The Modbus RTU interface allows the user to program and configure the unit remotely through the BMS. Remote access gives complete control to the user when using Modbus. Alternatively, electrical current or volt analog output provides an industry standard reading using 4-20mA.

Having three integrated relays within each instrument reduces the need for having to wire alarm devices back to a central control system. Because of the integrated relays, the Bacharach MGS-550 can be operated as a stand-alone system. Each relay can be individually programmed to trigger alarm devices and actions separately or as a redundant system.

The straightforward menu structure is identical regardless of the type of sensors used, reducing the costs and amount of time for training required upon installation or during maintenance.

Bacharachs MGS-550 offers the flexibility of adding a second sensor at any point in time without the need for any additional controllers. Any sensor can be remotely mounted from the main instrument to a distance of 5 meters or 15 feet. It meets the requirements of EN 378 and ASHRAE 15.

MGS-550 TECHNICAL DATA
Gases and Ranges Refrigerants: 1,000 ppm / 10,000 ppm
CO2: 5,000 / 10,000 / 20,000 / 30,000 / 40,000 / 50,000 ppm
NH3*: 100** / 1,000** / 5,000** / 10,000 ppm / 100% LEL
O2: 30 Vol%
CO**: 500 / 1,000 ppm
Combustible gases: 5,000 ppm / 100% LEL
C2H4: 2,000 ppm
NO2***: 20 ppm
Repeatability 5% of applied gas concentration
Display Red 5-digit, 7-segmented LED and green status LEDs
Output Analog: 4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V
Digital
Modbus RTU via RS 485
Power Supply 19.5 to 28.5 VDC or 24 VAC 20%; 3- or 4-wire
Relay Three relays, SPDT, user assignable
Rating 2 A @ 30 VDC NO, 0.5 A @ 125 VDC, 0.25 A @ 250 VAC, 30 W, resistive load
Enclosure General purpose: ABS IP66 with four M20 x 1.5 cable glands
Size (WHD) Approx. General purpose: 8.3 x 8.9 x 3.4 / 210 x 225 x 85 mm
Weight Approx. GP: 2 lbs / 1 kg; XP: 3.5 lbs / 1.6 kg
Approvals CE, UL / CSA / IEC EN 61010-1
Ambient Temperature Semiconductor: -40 to 122F / -40 to +50C
Electrochemical: -5 to 122F / -20 to + 50C*
Infrared: -40 to 122F / -40 to +50C
Catalytic Bead: -40 to 122F / -40 to +50C
Ambient Humidity 5 to 90 % RH, non condensing
Ambient Pressure 23.6 to 32.5 inch Hg / 800 to 1,100 mbar
*: NH3 available as low temperature version -40F / 40C (not for 5,000 ppm Electrochemical sensor)
**: IP66 rated; not available in XP enclosure
***: Not IP66 rated; not available in XP enclosure
****: MGS-550 is not approved as an explosion-proof product and should NOT be installed in hazardous locations
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)9027102000



B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    2 Items found.
6600-8055
(6273)

BACHARACH  6600-8055

Bacharach MGS-550 Industrial Refrigerant Gas Detector with semiconductor sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-10000ppm. 3 x relays, analog output, RS485 MODBUS output and 5-digit display. Remote sensor capabilities. IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R32, R134A, R404A, R407A, R407C, R407F, R410A, R422A, R422D, R507, HFO1234ZE.

Configure

$711.90
6702-8000
(6262)

BACHARACH  6702-8000

Bacharach MGS-408 Gas Detection Controller for up to 8 MGS-400 Series detectors over Modbus RTU in Refrigeration Applications. Includes 3 x relays (low, high & fault), RS485 Modbus RTU communications, audible and visual alarms, event logging, powers MGS-400 Series gas detectors

Configure

$995.02
> REFRIGERANTS :    30 Items found.
6302-0101
(6240)

BACHARACH  6302-0101

Bacharach MGS-410 Gas Detector Transmitter with semiconductor sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-1000ppm measurement in Refrigeration Applications. RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R134A, R404A, R407A, R410A, R507A, R407C, R407f, R-1234ze, R32, R448A, R452A, R513A, R434A, R450A, R1234yf, R514A, R452B, R454A, R422, R422D, R427A, R449A or R454C. Mobile App Bluetooth Interface.

Configure

$267.30
6302-1101
(6250)

BACHARACH  6302-1101

Bacharach MGS-450 Gas Detector Transmitter with semiconductor sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-1000ppm measurement in Refrigeration Applications. 3 x relays (low, high & fault), analog output (4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V), RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP41 or IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R134A, R404A, R407A, R410A, R507A, R407C, R407f, R-1234ze, R32, R448A, R452A, R513A, R434A, R450A, R1234yf, R514A, R452B, R454A, R422, R422D, R427A, R449A or R454C. Mobile App Bluetooth Interface.

Configure

$311.40
6302-4101
(6260)

BACHARACH  6302-4101

Bacharach MGS-460 Gas Detector Transmitter with remote (5m) electrochemical sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-1000ppm measurement in Refrigeration Applications. 3 x relays (low, high & fault), analog output (4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V), RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R134A, R404A, R407A, R410A, R507A, R407C, R407f, R-1234ze, R32, R448A, R452A, R513A, R434A, R450A, R1234yf, R514A, R452B, R454A, R422, R422D, R427A, R449A or R454C. Mobile App Bluetooth Interface.

Configure

$461.70
RD-6
(4063)

MACURCO  RD-6

MACURCO RD-6 line voltage Refrigerant (REF) 0-1000 ppm Gas Detector controller and transducer for R-22, R-134A, R-404A, R-407C and R-410A. Selectable 4-20mA output, buzzer, alarm and fan relays with digital display. 12 to 24 VAC or 12 to 32 VDC. ETL Listed to UL 61010-1. Long life solid state sensor.

Configure

$470.25
RD-12
(4062)

MACURCO  RD-12

MACURCO RD-12 line voltage Gas Detector, controller and transducer for Refrigerants (REF) 0-1,000ppm including R-22, R-134A, R-404A, R-407C and R-410A. Selectable 4-20mA output, buzzer, alarm and fan relays with digital display. 100 to 240 VAC 50-60Hz power. ETL Listed to UL 61010-1. Long life solid state sensor.

Configure

$480.75
6302-0052
(6236)

BACHARACH  6302-0052

Bacharach MGS-410 Gas Detector Transmitter with catalytic sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-100% LEL measurement in Refrigeration Applications. RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R600 or R290. Mobile App Bluetooth Interface.

Configure

$517.50
P-7231
(6787)

PROSENSE  P-7231

Prosense P-7231 Gas Detector with Electrochemical sensor for Refrigrant (Freon) with range 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. ATEX/IECEx approval (Zone 1 or Zone 2). IP65, Optional IP66 Adaptor.

Configure

$519.75
6302-1052
(6246)

BACHARACH  6302-1052

Bacharach MGS-450 Gas Detector Transmitter with catalytic sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-100% LEL measurement in Refrigeration Applications. 3 x relays (low, high & fault), analog output (4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V), RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP41 or IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R600 or R290. Mobile App Bluetooth Interface.

Configure

$582.30
6302-4052
(6256)

BACHARACH  6302-4052

Bacharach MGS-460 Gas Detector Transmitter with remote (5m) catalytic sensor for Refrigerant Gases (HFC, CFC, HCFC) 0-100% measurement in Refrigeration Applications. 3 x relays (low, high & fault), analog output (4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V), RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP66 Housing. CE, UL and CSA Approvals. Factory configured for either R600 or R290. Mobile App Bluetooth Interface.

Configure

$721.80
PQN-7231-1/2
(6960)

PROSENSE  PQN-7231-1/2

Prosense PQN-7231 Gas Detector with Electrochemical sensor for Refrigrant (Freon) with range 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. ATEX/IECEx (Zone 1, Zone 2 or M2) approvals, optional SIL2. IP65, Optional IP66 Adaptor and remote display.

Configure

$750.75
PQD-7231-1/2
(6748)

PROSENSE  PQD-7231-1/2

Prosense PQD-7231 Gas Detector with Electrochemical sensor for Refrigrant (Freon) with range 0-2000ppm. Ex-proof housing and SS316 stainless steel sensor head. 4-20mA Analog and Modbus RS485 RTU outputs, optional Relay card. OLED Display. ATEX/IECEx (Zone 1, Zone 2 or M2) approvals, optional SIL2. IP65, Optional IP66 Adaptor.

Configure

$866.25
6401-0500
(4509)

BACHARACH  6401-0500

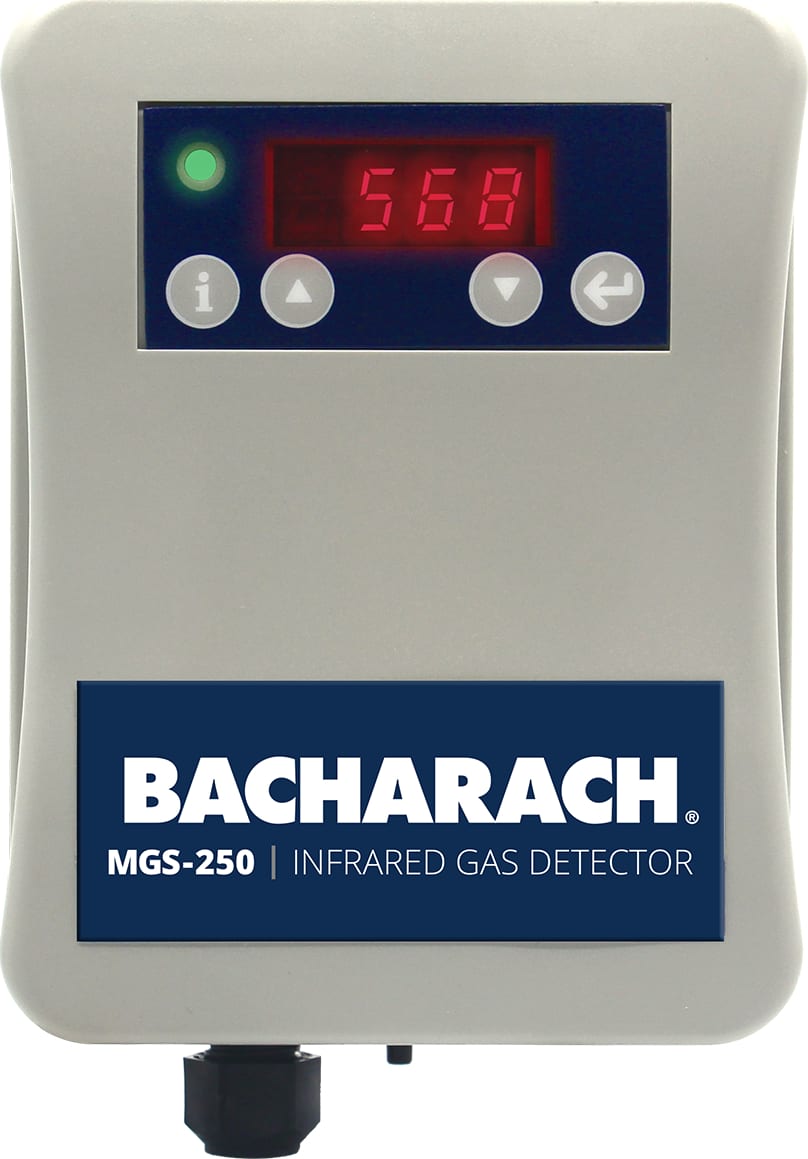

Bacharach MGS-250 Infrared Gas Detector Transmitter for Halocarbon (0-3500ppm). Long-life and non-dispersive sensor. Modbus RTU interface. User selectable analog output (4-20mA, 0-5V, 1-5V, 0-10V or 2-10V). LED display, audible and visual alarms. CE and UL/CSA/IEC/EN 61010-1 Approved.
