BACHARACH   6302-1003

SKU# (6242)



BACHARACH 6302-1003

DETECTORS / GAS DETECTORS (GENERAL-PURPOSE)
OXYGEN

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
Bacharach MGS-450 Gas Detector Transmitter with electrochemical sensor for Oxygen (O2) 0-30 Vol% measurement in Refrigeration Applications. 3 x relays (low, high & fault), analog output (4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V), RS485 MODBUS RTU output, included audible & visual alarms: 72dB @10cm buzzer and single tri-color LED (green, red, orange). IP41 or IP66 Housing. CE, UL and CSA Approvals. Mobile App Bluetooth Interface.

6302-1003
Please Email us your request for quote

Housing

  [  7 Days  ]



FEATURES
  • Mobile App Interface
  • Simple Configuration via App
  • Pre-calibrated Sensors
  • Semi-automated Calibration
  • Temperature-compensated Measurement
  • Analog and Digital Communications
  • On-board Relays
  • Audible and Visual Alarms
  • Multiple Cable Entries and Terminals
  • Low-temperature Performance
BENEFITS
  • Quick, easy and intuitive commissioning, configuration and maintenance requires no special training
  • No tools required to set alarm behavior and alarm levels
  • Save time and money on maintenance procedures
  • Easy process with no potentiometers or volt meters
  • Mitigates false alarms and optimizes accuracy in refrigeration applications
  • Integrates with BMS / BAS control systems via Modbus and / or analog outputs
  • Trigger additional alarm beacons and mechanical ventilation in the event of a refrigerant leak
  • Comply with ASHRAE 15 / EN 378 - no additional hardware
  • Quick and easy installation of all wiring; daisy-chain power and digital communications
  • Suitable for use in all refrigeration applications from machinery rooms to freezers
DESCRIPTION

Bacharach’s MGS-450 Gas Detector makes compliance with refrigeration safety codes simple and easy, saving time and money on equipment and installation. Using the MGS-400 App, users can intuitively use, commission and maintain their gas detection system without the need for specialty training or tools. Pre-calibrated sensor modules simplify maintenance, take minutes to exchange and do not require the use of calibration gas.

The MGS-450 can trigger additional audio-visual alarms and act as a standalone gas detection system, or integrate easily into a BMS / BAS or with Bacharach’s optional MGS-408 Gas Detection Controller.

MGS-450 TECHNICAL DATA
Gases and Ranges Refrigerants: 1,000 ppm
CO2: 5,000 / 10,000 / 20,000 / 30,000 / 40,000 / 50,000 ppm
NH3: 100 / 1,000 / 5,000 / 100% LEL
O2: 30 Vol%
CO: 500
Combustible gases - Semiconductor (R-290, R-600, R-50, R-600a, HC-12a, R-717): 5,000 ppm
Combustible gases - NDIR (R-600, R-50, R-290): 100% LEL
Combustible gases - Catalytic (R-600, R-50, R-290, R-717): 100% LEL
NO2: 20 ppm
Status Indicator Single tri-color LED (green, red, orange)
Buzzer 72dB @ 10 cm
Output Single configurable analog output: 4 to 20 mA, 0 to 5 V, 0 to 10 V, 1 to 5 V, 2 to 10 V
Digital: Modbus RTU via RS 485
Power Supply 24V AC or DC (auto selecting), 4W (max)
Relay Three relays, SPDT, fixed low / high fault alarms
Rating 2 A @ 30 VDC
Enclosure IP41, IP66
Size (W×H×D) Approx. IP41: 6.5” × 6.5” × 3.0” (165 × 165 × 77 mm)
IP66: 6.5” × 6.5” × 3.4” (165 × 165 × 87 mm)
Weight Approx. 1lb, 1oz (480 g)
Approvals CE, UL / CSA / IEC EN 61010-1
Ambient Temperature Semiconductor: -40 to 122°F / -40 to +50°C
Electrochemical:
NH3: 100 / 1,000 ppm: -40 to 40°C
NH3: 5,000 ppm: -20 to 40°C
CO: 500 ppm: -40 to 50°C
NO2: 20 ppm: -20 to 40°C
O2: 30% Volume: -20 to 50°C
Infrared: -40 to 122°F / -40 to +50°C
Catalytic Bead: -40 to 122°F / -40 to +50°C
Ambient Humidity 5 to 90 % RH, non condensing
Ambient Pressure 23.6 to 32.5 inch Hg / 800 to 1,100 mbar
Free Mobile AppConfiguration, Maintenance, Calibration, User Interface via Bluetooth
Export Info
Made inUnited States
Harmonized Tariff Code (HTC)9027102000

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    6 Items found.
6302-9990
(6618)

BACHARACH  6302-9990

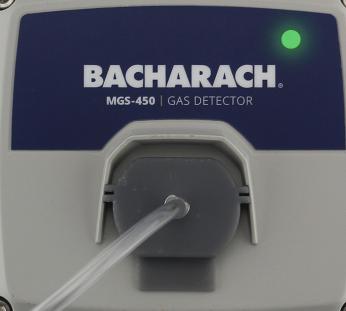

Bacharach MGS-400 calibration adapter / cup, includes 2 ft hose.




(6263)

BACHARACH  3015-8041

Bacharach 860 Series Electronic Xenon Horn (100dB) and Strobe (60fpm) for MGS-400 Detectors. Low Current and High Decibel. Thermoplastic housing.

Configure


6302-9003
(6619)

BACHARACH  6302-9003

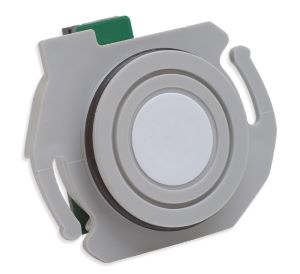

Bacharach pre-calibrated sensor module for Oxygen (O2) 0-30%, Low Alarm Electrochemical sensor for MGS-410, MGS-450, MGS-460 gas detectors.
