FEATURES
Enhanced Technology
- Accepts inputs from up to two 4-20mA sensors transmitters. Generates 24 VDC @ 8 watts external device power
Fit for Purpose
- CSA certified to C22.2 NO. 152 for combustible detection and Class I, Div. 2, Groups A,B,C,D CE
- Touch & magnetic keypad for nonintrusive operation in potentially hazardous locations
- NEMA 4X (Div. 2 certified) and Explosion-Proof wall mount packaging options available
- Three standard SPDT common alarm relays for HORN, HIGH, WARN or FAULT
Advanced Communications
- 3 independent alarm levels per channel. Relay Acknowledge feature allows silencing of external audible devices during existing alarm conditions
- Graphic LCD readout displays monitored data as bar graphs, trends and engineering units. Alarm LED's flash when new and become steady after acknowledged
- Cal Mode offers pushbutton zero / span calibration for direct sensor interface applications. Authorization Mode allows locking of critical configuration variables
The HA20 digital gas controller provides simultaneous display and alarm functions for two sensor transmitters, along with user-friendly operation and configuration flexibility.
The HA20 accepts sensor inputs for gas concentration and other atmospheric data. It can function as a standalone device or can be integrated into a fire and gas system. The controller features NEMA4X enclosures and meets Class I, Div. 2, Groups A,B,C,D requirements. Explosion-proof wall mount packaging options are also available.
The controller features a large, graphic LCD readout that displays monitored data as bar graphs, trends and engineering units. A touch-and-magnetic keypad allows for non-intrusive operation in potentially hazardous locations. Cal Mode offers pushbutton zero/span calibration for direct sensor interface applications. Authorization Mode allows locking of critical configuration variables.
Other standard features include Modbus TCP/IP communications, three independent alarm levels per channel, alarm relays, flexible mounting options and 4-20m inputs. The 4-20mA inputs are ideal for interfacing to sensor transmitters that may be long distances from the controller. 24 VDC @ 8 watts provides external device power. The controllers accept inputs from two local or remote mounted sensors or transmitters.

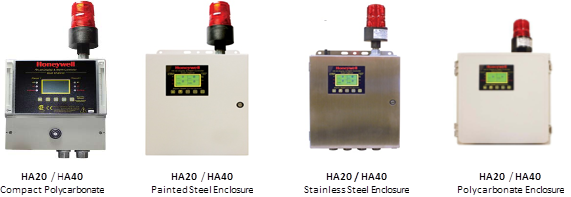

Enclosures
