MULTI-POINT CONTROLLERS > HIGH DENSITY

CX Multi-Point Gas Alarm Controller with 16 x 4-20 mA analog input channels, standard SPDT relays for Alarm1, Alarm2 and Horn. Ethernet (EtherCAT) Distributed Remote I/O capability, 5.7 inch Windows CE Full Color Touch-Screen Graphic panel. Accepts up to 16 signal inputs from any 4-20 mA gas transmitters, expandable to 64. NEMA-4X enclosure.

GasDetectorsUSA Model CX is a PLC-based control system designed to monitor and control multiple gas detection points. Designed on a Beckhoff panel PC running the Windows CE operating system with a real-time deterministic PLC runtime and an EtherCAT master for plant-wide distributed remote I/O. This allows the CX to monitor and control remote gas detection points over Ethernet TCP/IP; analog and digital I/O modules can be added, locally or remotely.

The system is completely windows user-friendly configurable without the need for engineering or PLC Programmer support and operated from its 800x600 5.7 inch color TOUCH SCREEN panel. Selection of the number of active channels, gas name, engineering units, range of measurement, time between calibrations, control action, hysteresis, set points, latch action, time delay, etc. are all simple menu driven tasks accomplished by navigating through and using a series of Configuration screens. Factory Defaults button and one-man calibration function allow commissioning in no time,

• Individual, continuous readout and status for each channel
• 5.7 inch TOUCH Windows CE graphic display
• Wall-mount NEMA-4X Enclosure
• PLC Based with modular local and remote I/O
• Ethernet TCP/IP distributed I/O capable
• Field programmable
• Simple menu driven, touch screen configuration
• Three standard, 10 amp SPDT relays. Alarm1, Alarm2 and Horn general outputs with configurable blink/no blink option.
• Exclusive CUSTOM MAP DISPLAY capability that shows the location and status of all detection points
• Alarm and Calibration LOG
• Calibration needed and point fault indication
• 24 Hour Trend
• Ethernet TCP/IP connectivity to the user's LAN
• Expandable to 64 4-20 mA analog inputs, DIN rail mounted bus terminals (modules).
• Additional discrete relays optionally available - two per channel for LOW and HIGH alarms. Each channel is programmable for latching/non-latching action.
• 24 VDC digital inputs configured for External RESET and SILENCE. Can be used to reset or cancel all latched alarms.
• Accepts 4-20 mA signal input from any 4-20 mA gas transmitter

Display Snapshots:

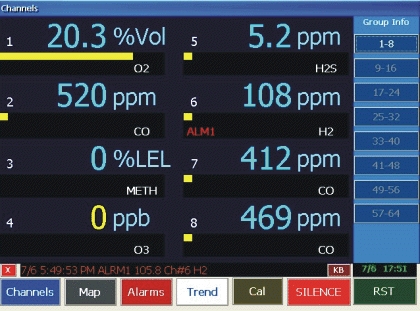

Channel Groups

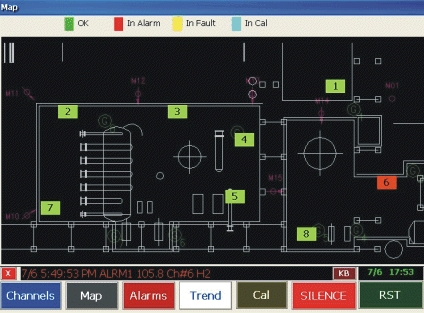

User-Defined Map shows detector location and Status

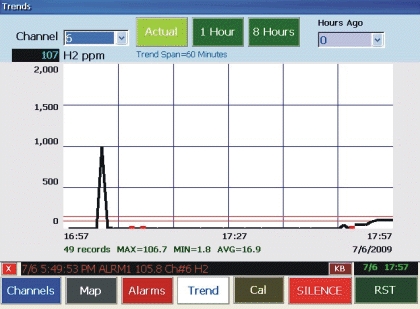

Point Trends

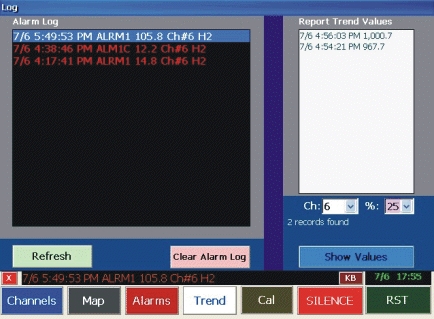

Alarm Display

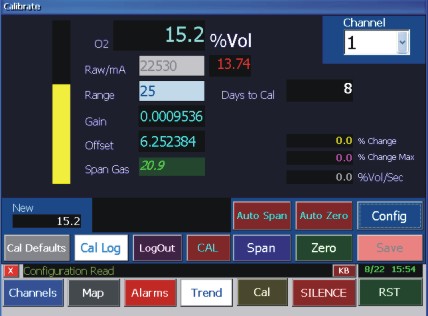

Channel Calibration Screen

Power	Field selectable for AC (115 and 230 VAC) or DC (24 VDC)
AC Input	115 VAC 50-60 Hz standard; 230 VAC 50-60 Hz
DC Input	24 VDC (18 to 28 VDC) 0.7 Amps
Backup	Optional battery back-up 24 VDC supply. Approx. 3 hours in normal operation
Operating Temperature	-4 to +122°F (-20 to +50°C)
Relative Humidity	5 to 99% non-condensing
Enclosure Rating	NEMA-4X
Dimensions	16 x 14 x 8 inches (40 x 35 x 20 cm)
Weight	21 lb. (9.6 kg)
Enclosure	NEMA-4X with transparent door and aluminum swing panel
Wire Terminations	Cage Clamp type wiring system
Mounting	Wall mounted equipped with hanging slots and hinged door
Alarms	2 configurable alarm set points for each channel programmable hysterisis and time delay for each channel
Analog Inputs	1 to 64 4-20mA user configurable gas detection channels
Outputs	SPDT relays; 10 amp @ 110 VAC/24 VDC, 8 amp @ 230 VAC
Alarm Relays	Standard: One (1) common Alarm1, One (1) common Alarm2 One (1) common Horn relay Optional: Two (2) per channel; one (1) Alarm1 and one (1) Alarm2 Field selectable: latching/non-latching;
Warranty	Two (2) years non-prorated

-$3,755.00
