PERSONAL SAFETY > BW PORTABLES CAL STATIONS

MicroDock II automatic test and calibration system. Base station with GasAlertClip Extreme Oxygen O2 module.

(Not compatible with ClO2 or O3)

Cost effective calibration and bump test management

The MicroDock II is an easy, cost-effective way to bump-test, calibrate, charge and manage records for BW portable gas detectors. With Fleet Manager II software, download information faster than ever from the MicroDock II. Improved functionality allows you to create accurate and user-friendly reports, print receipts of calibration, sort and graph data, archive information and manage your fl eet of detectors. Compliance has never been easier.

• No computer required
• Fully portable
• Automatic bump test and calibration
• Expandable up to 10 modules
• Stores and updates calibration records
• Automatically tests audible and visual alarms
• Fleet Manager II Software included
• Manage multiple MicroDock II systems via LAN

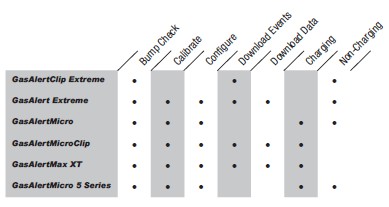

Application Matrix

Available Cal Station Modules:

• H2S Hydrogen Sulfide
• CO Carbon Monoxide
• SO2 Sulfur Dioxide
• O2 Oxygen

MicroDock II User Manual

Size	8.3 x 10.4 x 3.2 in. / 21.2 x 26.3 x 8.2 cm (base station plus one docking module)
Power Supply	6V wall adaptor or four C-cell batteries
Communication Interface	USB 2.0 interface for PC (USB 2.0 full speed)
Pump	DC motor, micro-diaphragm; 6V PCB mount Flow rate 300 ml/min (typically)
Solenoid	Built-in (docking modules)
Command Keys	Base station - Menu navigation Docking module - One touch bump-test initiation - One touch calibration intitation - One touch data transfer (specific products)
LED Indicators	Yellow “TEST”, Green “PASS”, Red “FAIL”
Certifications and approvals	CSA Ordinary Location approved IEC 61010 C22.2 No. 61010 CE: European Conformity
Warranty	Full 2 year warranty

-$1,495.00
