BW   MCXL-XWH0-Y-NA

SKU# (726)



BW MCXL-XWH0-Y-NA

DETECTORS / GAS DETECTORS (PORTABLE)
MULTI-GAS

  • DESCRIPTION
  • FEATURES
  • SPECIFICATIONS
  • LITERATURE
BW GasAlertMicroClip XL Multi-gas portable gas detector for combustible 0-100% LEL (Lower Explosive Limit) , 0-30.0% O2 (Oxygen), 0-100 ppm H2S (Hydrogen Sulfide).

MCXL-XWH0-Y-NA
Please Email us your request for quote

Housing
Region
Target Gas Setup Preset
Methane factory calibration with correction factor applied.

  [  7 Days  ]



The slim and compact GasAlertMicroClip XL provides affordable protection from atmospheric hazards. This multi-gas detector offers continuous visual confirmation of detector operation and compliance with the IntelliFlash™ feature and simple onebutton operation offers ultimate ease of use and significantly reduces time spent training the user. The GasAlertMicroClip XL is fully compatible with BW's MicroDock II automatic test and calibration system.

  • Continuous visual compliance with IntelliFlashTM
  • Multi-gas versatility with one-button simplicity
  • Incredibly thin and lightweight, making it comfortable to wear
  • Extraordinarily low cost of ownership
Standard features of BW products:

  • Continuous LCD shows real-time gas concentrations
  • Compact and lightweight design makes it comfortable to wear
  • Water-resistant
  • Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
  • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
  • Bright wide-angled visual alarm bars
  • Built-in concussion-proof boot
  • Conveniently manage your fleet using Fleet Manager II
Additional GasAlertMicroClip XL features:

  • IntelliFlash verifies operation and compliance to both the user and supervisor
  • Tamper-proof, one button operation
  • Equipped with internal vibrating alarm for high noise areas
  • Powered by a lithium polymer battery
  • Multi-language support in English, French, German, Spanish and Portuguese
Standard Package Contents
  • Detector complete with specified sensor(s), stainless steel alligator clip and concussion-proof housing
  • Rechargeable lithium polymer battery
  • Charging adaptor
  • Calibration/test cap and hose
  • Manual
  • Multi-language CD manual

Gas Measuring Range Resolution
H2S 0-100 ppm 1 ppm
O2 0-30.0% 0.1%
Combustible gases 0-100% LEL
0-5.0% v/v		 1%
0.1%
General Specifications
Size 4.4 x 2.4 x 1.1 in. / 11.3 x 6.0 x 2.9 cm
Weight 6 oz. / 171 g
Temperature -4 to +136°F / -20 to +58°C
Humidity 0% - 95% RH (non-condensing)
Alarms Visual, vibrating, audible (95 dB)
Low, High, STEL, TWA, OL (over limit)
Tests Audible/visual alarms on activation, sensors, battery and circuitry (continuous)
Typical battery life 10 hours (typical); recharges in less than 4 hours
User options Confidence beep Set STEL interval
Sensor on/off Latching alarms
Safe display mode Stealth mode
Calibration lock Auto zero on start up
O2 auto calibration on start up Set bump test interval
IntelliFlash interval Combustible gas measurement (% LEL or % by volume methane)
User-settable calibration gas level Force bump test when overdue
Force calibration when overdue Low alarm acknowledge
Language choices (five) Set custom start up message
Ratings EMI/RFI: Complies with EMC Directive 2004/108/EC
IP 66/67
Certifications and approvals Class I, Div. 1, Gr. A, B, C, D
American Bureau of Shipping
ATEX: II 1 G Ex ia IIC T4 Ga
IECEx: Ex ia IIC T4 Ga
European Conformity
Warranty Full two-year warranty including all sensors

 Info/Quote Request
 Reseller & Volume Discounts
 Shipping Rates

B2B Checkout Options: Designated Carrier and Tax-Exempt purchase
Payment Options: Credit Card, Credit Card Over the Phone, PAYPAL, Wire Transfer and Check

Checkout with Paypal Visa MasterCard Amex Checkout with Wire Transfer Electronic Payment

> ACCESSORIES - RELATED - CONSUMABLES :    4 Items found.
GA-USB1-IR
(530)

BW  GA-USB1-IR

USB IR connectivity kit with Soft Tools for software GasAlertQuattro, GasAlertMicroClip XT/XL and GasAlertMax XT II with Fleet Manager II software




SR-H-MC
(543)

BW  SR-H-MC

Replacement MICROceL hydrogen sulfide (H2S) sensor for GasAlertMicroClip XT and GasAlertMax XT II




SR-W-MP75C
(541)

BW  SR-W-MP75C

Replacement MICROpeL combustible LEL sensor for GasAlertMicroClip XT and GasAlertMax XT II




DX-MCLP
(5161)

BW  DX-MCLP

BW IntelliDoX automated instrument management system for GasAlertMicroClip XL and X3. 12V. Provides bump testing, calibration, configuration, and record-keeping support. Infrared communication. Ethernet and USB port. Includes 2GB internal data storage.

Configure


> MULTI-GAS :    24 Items found.
MP42-20000-000
(6827)

MPOWER  MP42-20000-000

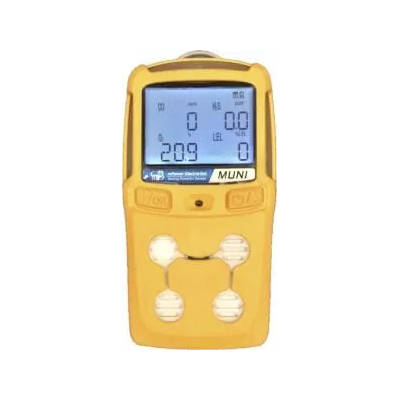

mPower MUNI MP420 Compact 4-gas detector, options for Oxygen (O2) 0.1-30.0% Vol, combustibles (LEL) 1-100% LEL, Carbon Monoxide (CO) 1 - 1000 ppm and Hydrogen Sulfide (H2S) 0.1 - 100 ppm on hazardous locations. Alternative sensors available for Lead Free Oxygen (O2), Methane (CH4), Sulfur Dioxide (SO2) and Hydrogen Cyanide (HCN). Diffusion sampling. Audible (95dB), Visual (tri-color LEDs) and Vibration alarms. Includes rechargeable Li-ion battery, calibration cap and events logger. IP68. UL approved for Class I Div 1, IECEx and INMETRO.

Configure

$240.00
CP-I-00000000-Y-00
(6829)

BW  CP-I-00000000-Y-00

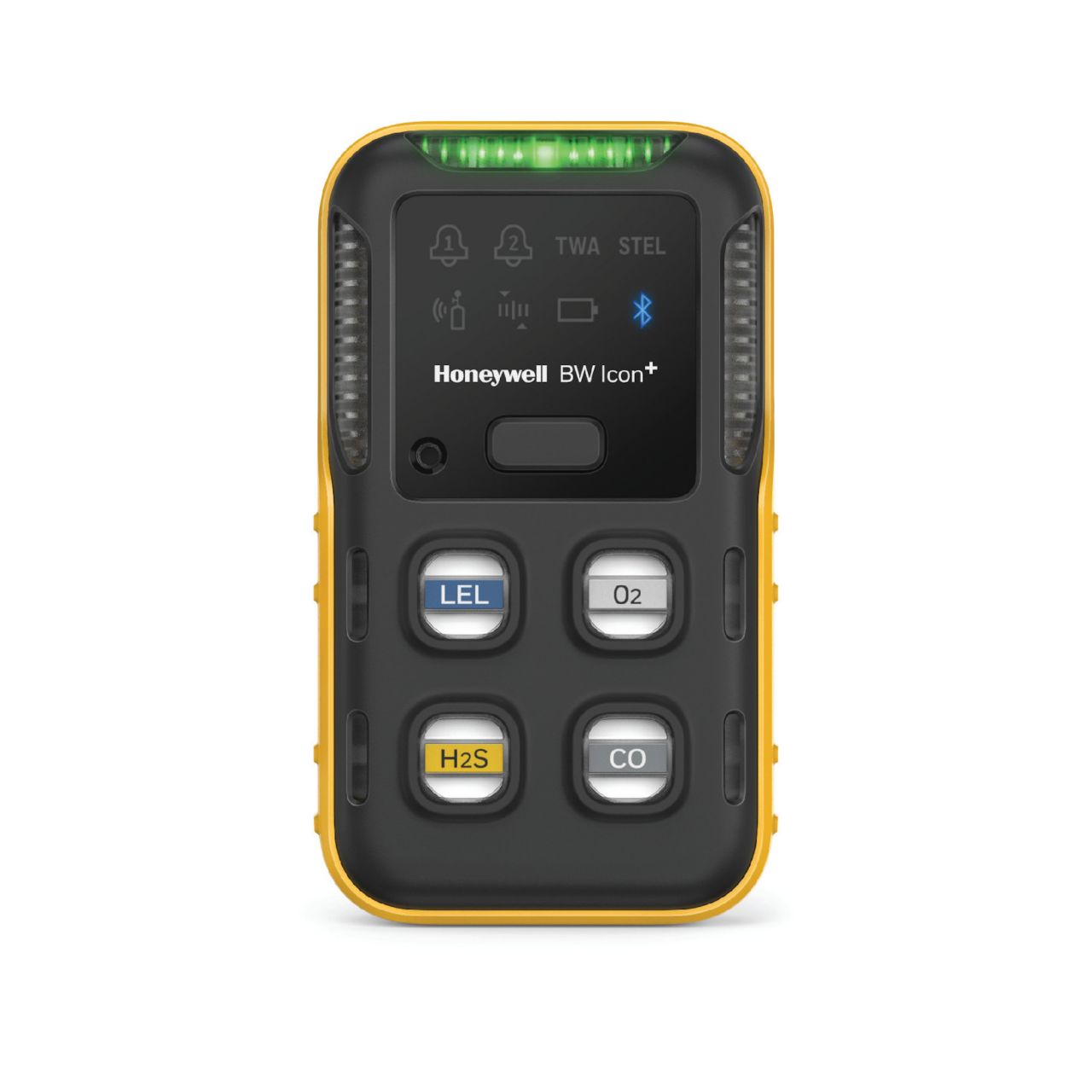

Honeywell BW Icon+ Multigas detector for up to 4 gases: Carbon Monoxide (CO) 0 to 2000 ppm, Hydrogen Sulfide (H2S) 0 to 200 ppm, Sulfur Dioxide (SO2) 0 to 150 ppm, Oxygen (O2) 0 to 30% VOL and NDIR Methane (CH4) 0 to 100% LEL available. Icon Display. Intelligent sensors. Small, lightweight and wearable. One-button operation. Visual, vibrating and audible alarms. IP66/68. Bluetooth. ATEX and IECEx approvals.

Configure


MCXL-000M-Y-NA
(739)

BW  MCXL-000M-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-500 ppm CO (Carbon Monoxide).

Configure


MCXL-X000-Y-NA
(737)

BW  MCXL-X000-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-30.0% O2 (Oxygen).

Configure


MCXL-00H0-Y-NA
(738)

BW  MCXL-00H0-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-100 ppm H2S (Hydrogen sulfide).

Configure


MCXL-X0H0-Y-NA
(734)

BW  MCXL-X0H0-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-30.0% O2 (Oxygen), 0-100 ppm H2S (Hydrogen Sulfide).

Configure


MCXL-XW00-Y-NA
(730)

BW  MCXL-XW00-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for combustible 0-100% LEL (Lower Explosive Limit) , 0-30.0% O2 (Oxygen).

Configure


MCXL-X00M-Y-NA
(735)

BW  MCXL-X00M-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-30.0% O2 (Oxygen), 0-500 ppm CO (Carbon Monoxide).

Configure


MCXL-00HM-Y-NA
(733)

BW  MCXL-00HM-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-100 ppm H2S (Hydrogen Sulfide), 0-500 ppm CO (Carbon Monoxide).

Configure


MCXL-X0HM-Y-NA
(729)

BW  MCXL-X0HM-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for 0-30.0% O2 (Oxygen), 0-100 ppm H2S (Hydrogen Sulfide), 0-500 ppm CO (Carbon Monoxide).

Configure


MCXL-XW0M-Y-NA
(727)

BW  MCXL-XW0M-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for combustible 0-100% LEL (Lower Explosive Limit) , 0-30.0% O2 (Oxygen), 0-500 ppm CO (Carbon Monoxide).

Configure


MGC-S
(6135)

GAS CLIP  MGC-S

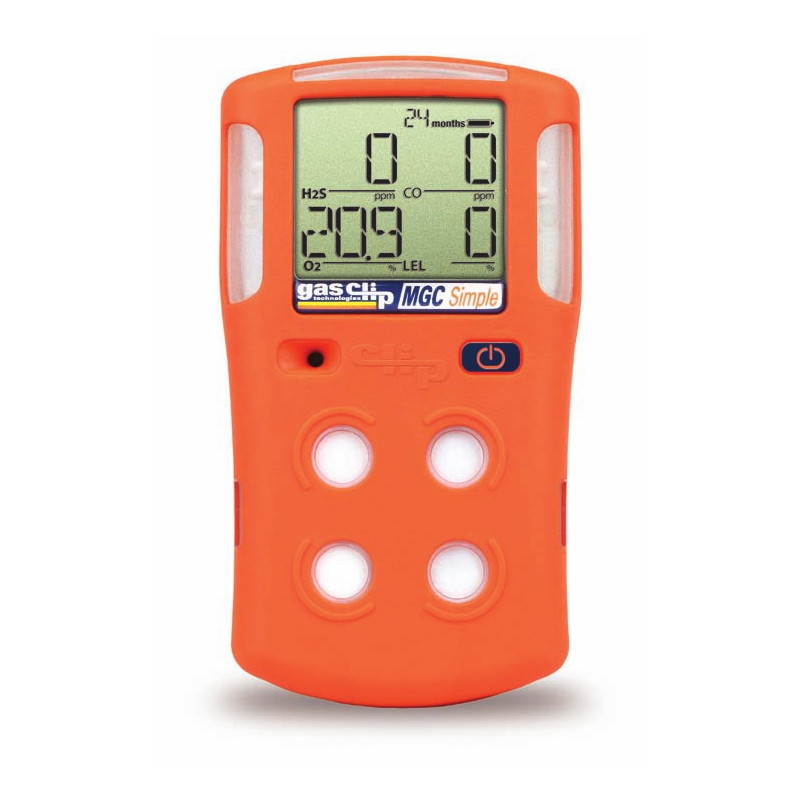

Gas Clip MGC-S Simple Portable 4-gas detector for Hydrogen Sulfide (H2S) 0 - 100 ppm, Carbon Monoxide (CO) 0 - 500 ppm, Oxygen (O2) 0 - 30% vol and combustible gases (0 - 100% LEL). Electrochemical and Infrared (IR) Sensors. 2 year lifetime. One button operation. Visual, vibrating and audible alarms. IP68. CSA, IECEx and ATEX approvals.



$632.71
MCXL-XWHM-Y-NA
(725)

BW  MCXL-XWHM-Y-NA

BW GasAlertMicroClip XL Multi-gas portable gas detector for combustible 0-100% LEL (Lower Explosive Limit) , 0-30.0% O2 (Oxygen), 0-100 ppm H2S (Hydrogen Sulfide), 0-500 ppm CO (Carbon Monoxide).

Configure


MPA2-81A601-02040
(6335)

MPOWER  MPA2-81A601-02040

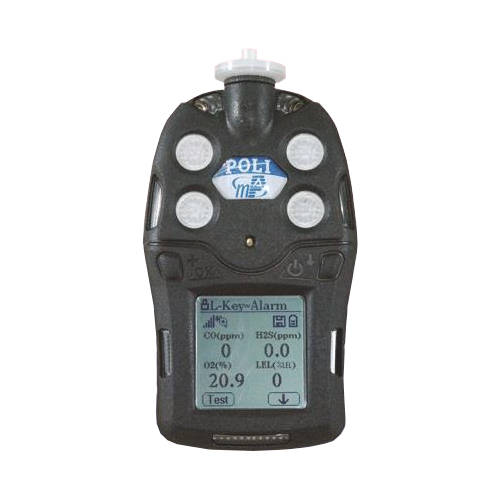

mPower POLI MP400P 4-gas detector for Oxygen (O2) 0-30% vol, combustibles (LEL) 0-100%, Carbon Monoxide (CO) 0-1000ppm and Hydrogen Sulfide (H2S) 0-100ppm on hazardous locations. Pump or Diffusion sampling. Audible (90dB0), Visual (flashing LEDs), Vibration and Man-Down alarms. Includes rechargeable Li-ion battery, calibration cup and event logger. IP67. CSA approved.

Configure

$713.60
BWC4-Y-N
(5383)

BW  BWC4-Y-N

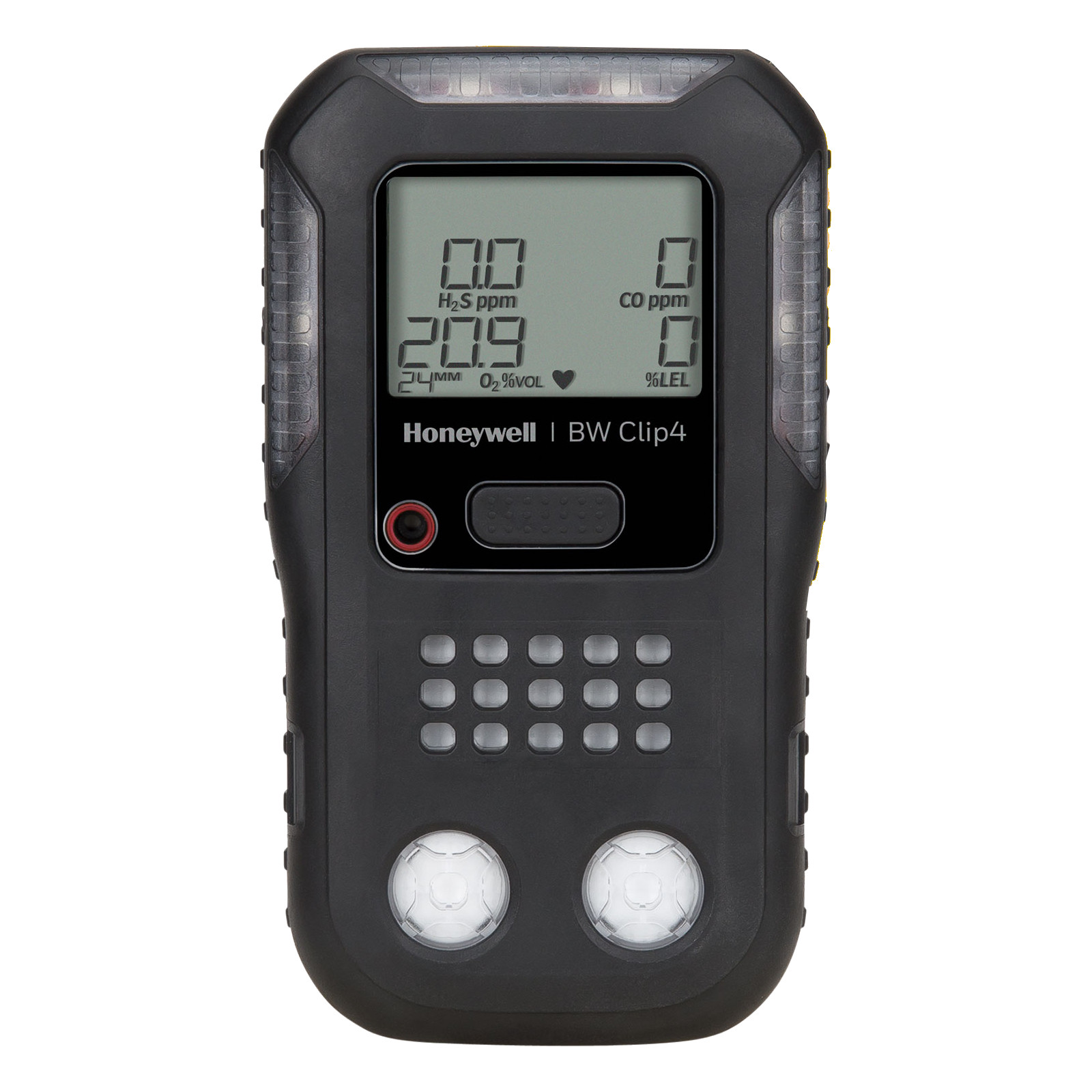

BW Clip4 Multi-Gas detector for Hydrogen Sulfide (H2S) 0-100 ppm, Carbon Monoxide (CO) 0-1000 ppm, Oxygen (O2) 0-25% vol. and Combustibles 0-100% LEL. 2-Year Continuous Runtime. No charging, no battery or sensor replacements. Visual, vibrating and audible alarms. IP68. UL, ATEX, IECEx and CE Approvals.

Configure


MCX3-XWHM-Y-NA
(6208)

BW  MCX3-XWHM-Y-NA

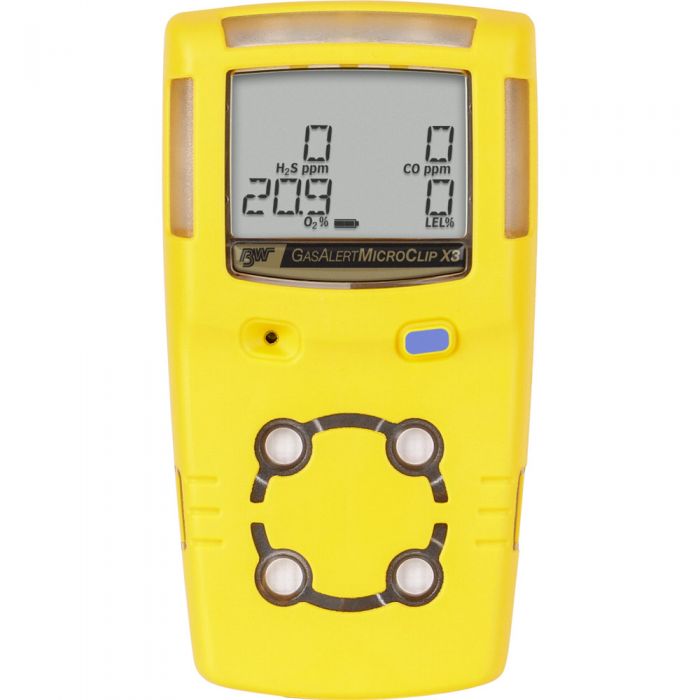

BW GasAlertMicroClip X3 Multi-gas portable gas detector for combustible 0-100% LEL (Lower Explosive Limit), 0-30.0% O2 (Oxygen), 0-100 ppm H2S (Hydrogen Sulfide) and 0-500 ppm CO (Carbon Monoxide). Includes 18-hour battery and audible/visual alarms. IP68. CSA, ATEX and IECEx Approvals.
